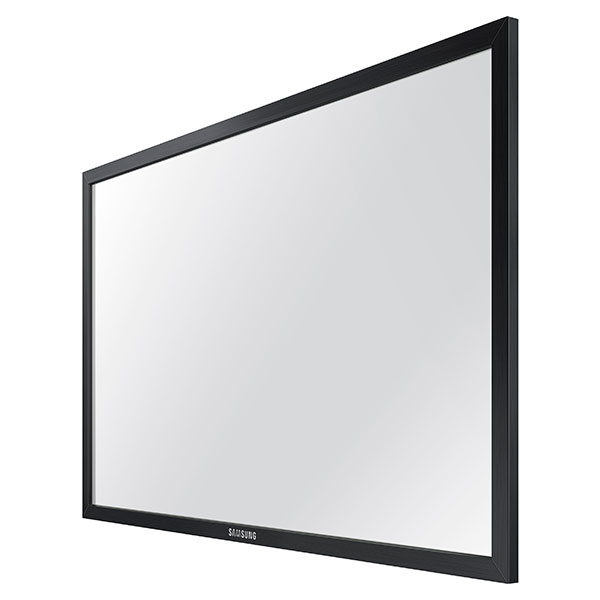

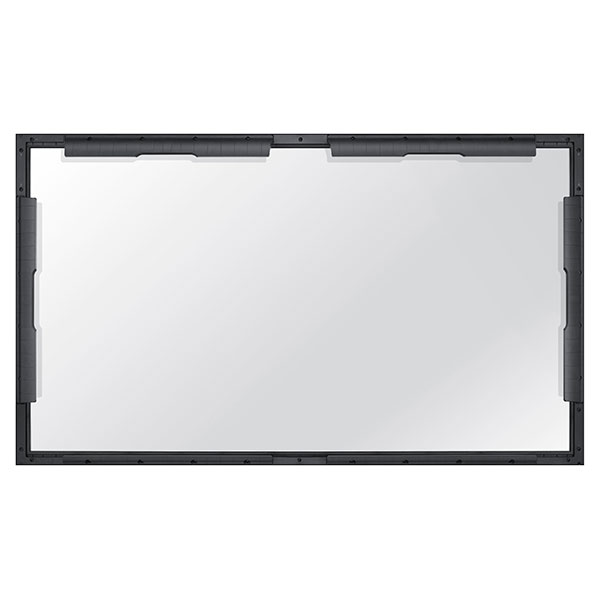

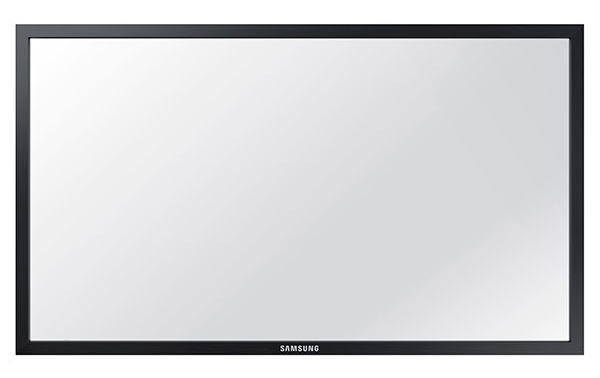

Samsung CY-TQ85LDAH - 85" Touch Overlay
Compatible with the Samsung QM85D 85" QM Series Display.

Samsung CY-TQ85LDAH - 85" Touch Overlay

This product is no longer available, please contact us for a replacement.

Overview:

Convert the Samsung QM85D into a dynamic touch screen with this 85" Touch Overlay. A special treatment on the front of the panel allows for realistic writing that is similar to writing on a conventional whiteboard, while scratch-resistant protection glass safeguards your display from hazards.

  • Convert a Standard Samsung Display into a Dynamic Touch Screen
  • Realistic Writing Similar to Using a Conventional Whiteboard
  • Scratch-Resistant Protection Glass Protects Your Display
  • Compatible with the Samsung QM85D 85" QM Series Display

Specifications:


Samsung CY-TQ85LDAH - 85" Touch Overlay Specifications
Dimensions
Product Dimensions 76.7" x 44.5" x 1.8"
Package Dimensions 83.2" x 51.2" x 10.8"
Weight
Product Weight 60.8 lb.
Package Weight 89.5 lb.
Glass Thickness 3.2mm
Glass Film AR(Front),PET(Rear)
Glass Reflection rate ≤10%
Glass Haze ≤15%
Frame Material Aluminum Extrusion
Bezel Width (mm) 39.9mm
Touch Technology IR
Number of touch points 1 Drawing 4 touch
