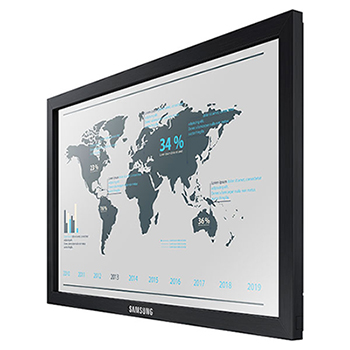

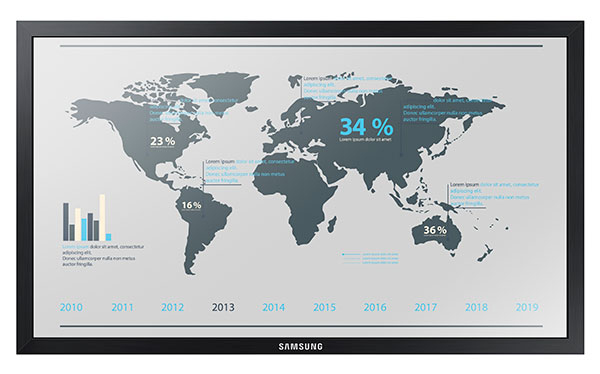

Samsung CY-TD48LDAH - 48" Touch Overlay
Compatible with the Samsung DH48D, DM48D or DB48D 48" D Series Displays.
This product is no longer available, please contact us for a replacement.
Overview:
Convert the Samsung DH48D, DM48D or DB48D into a dynamic touch screen with this 48" Touch Overlay. A special treatment on the front of the panel allows for realistic writing that is similar to writing on a conventional whiteboard, while scratch-resistant protection glass safeguards your display from hazards.
- Convert a Standard Samsung Display into a Dynamic Touch Screen
- Realistic Writing Similar to Using a Conventional Whiteboard
- Scratch-Resistant Protection Glass Protects Your Display
- Compatible with the Samsung DH48D, DM48D or DB48D 48" D Series Displays
Specifications:
| Samsung CY-TD48LDAH - 48" Touch Overlay Specifications | |
|---|---|
| Dimensions | |
| Product Dimensions | 44.1" x 26.0" x 1.1" |
| Package Dimensions | 48.0" x 31.4" x 4.6" |
| Weight | |
| Product Weight | 17.4 lb. |
| Package Weight | 22.9 lb. |
| Glass Thickness | 2.8mm |
| Glass Film | AG(Front),PET(Rear) |
| Glass Reflection rate | ≤10% |
| Glass Haze | ≤15% |
| Frame Material | Aluminum Extrusion |
| Bezel Width (mm) | 32.75mm |
| Touch Technology | IR |
| Number of touch points | 2 Drawing 10 touch |
| Accessory | |
| Included Hardware | Extention USB Cable(2m) IR receiver |
