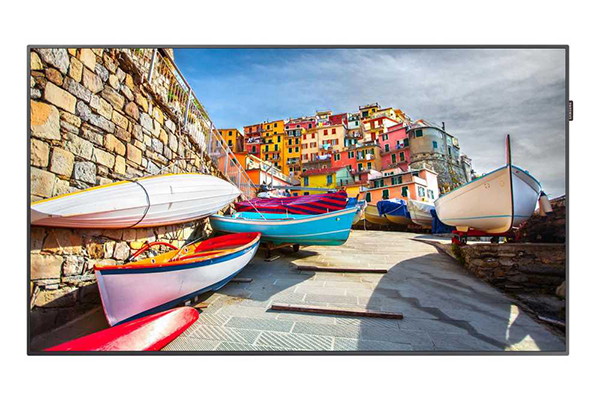

Samsung PM49H - PMH Series 49" LED Display
Premium TIZEN-powered displays built to handle any business need with 24/7 durability
More pricing below, click here!
Please Note: All Prices are Inclusive of GST
Overview:

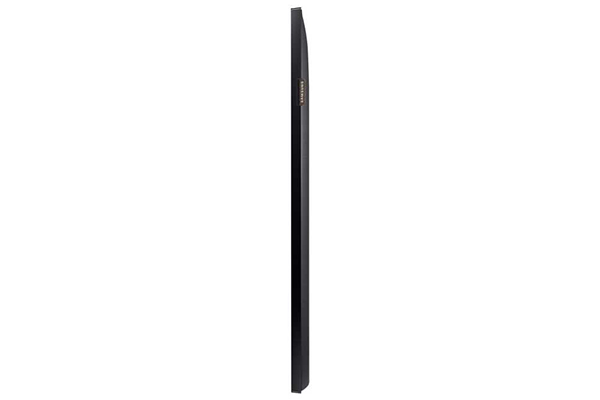

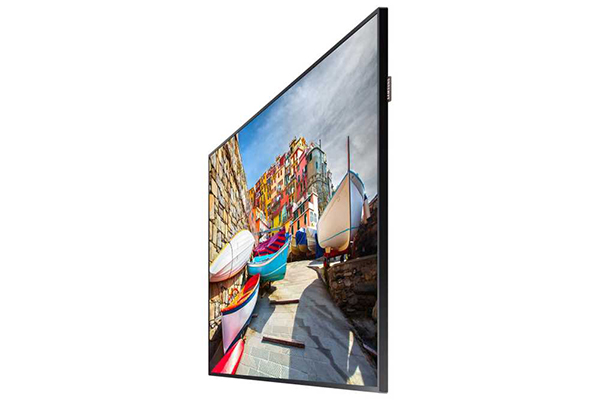

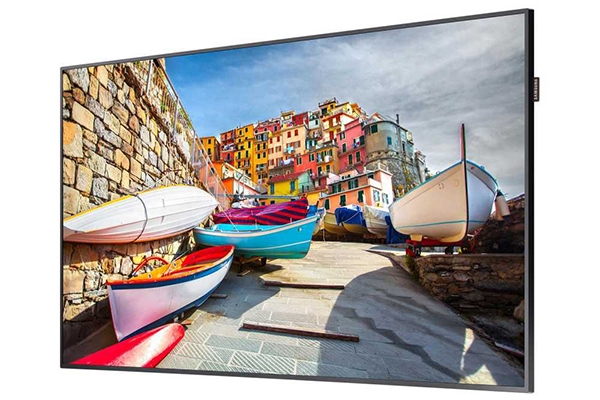

Samsung PM49H Series commercial display features a ultra-slim and narrow design. They’re built for 24/7 run-time and have an embedded System-on-Chip (SoC) media player for simple remote content management. The non-glare panel offers improved visibility, plus IP5X certified dust protection allows for smooth installation.
- Accommodate any business setting through slim design
- Deploy advanced web applications to effectively manage content by using SSSP 4.0 powered by TIZEN
- Effectively handle all environmental conditions and dusty situations thanks to IP5x-certified displays
- Realize complete and convenient control by navigating display hub with Central IR
- Discover heightened image visibility and information readability with non-glare panels
Features:
Durable premium displays optimize operations and message quality in any environment
Samsung's TIZEN-powered PMH Series premium displays achieve peak performance all while maintaining a stylish and captivating design. The PMH Series displays leverage elevated brightness and refined image sharpness to ensure a consistently clear presentation even in settings with variable lighting. Additionally, the IP5x-certified PMH Series displays achieve robust, 24/7 durability for dependable and uninterrupted operations. As a result, businesses can feel confident that their messages will be delivered exactly as intended anywhere and at any time.

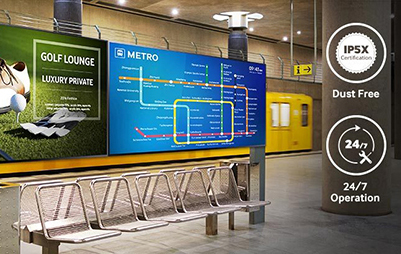

Put your worries to rest knowing that your display is protected from a range of environmental conditions
PMH standalone displays are IP5x certified, signifying their dust-resistant design and ability to withstand a range of environmental conditions. The certification alleviates concerns about dust accumulating on displays installed on subway trains or on external platforms. Customers can conveniently use this IP5x certified display without needing to prepare additional enclosure in dusty places. Uninterrupted, 24/7 content delivery is always assured regardless of surrounding natural or interactive conditions.
Embedded Media Player Powered by TIZEN
PMH series that supports SSSP 4.0 allows for a stronger, faster and more stable performance than its previous models. Transcending past hardware performance, the new SSSP 4.0 enables CMS partners to develop and deploy advanced web applications which can help to effectively manage content and SMART Signage for their customers.
Powerful Performance and simple usabilty
1) Enhanced 3D Graphic Engine : The display supports 3 movies playing concurrently on one screen with enhanced 3D graphic performance
2) PC-less Touch Solution : Touch performance is fully realized due to the TIZEN OS that bypasses the need for a PC.
3) Enhanced Security : A holistic security architecture allows for powerful security through 3 layers of supplementation.
4) Easy Development : The ability to develop the solution further is facilitated, thanks to development tools such as SW Development Kit or Remote Web Inspector.
5) Simple Usability : Usability is attained due to a touch-friendly UI while web browsers are able to display a homepage without the need to develop a web app.
Convenient display control through a centralized reciever
The standalone displays’ integrated centralized infrared receiver (IR) ensures easier and more flexible user control. All models can receive the IR signal on individual panels via Central IR. Through tailored installation or mounting, users can navigate the IR functionality from various locations, further augmenting uninterrupted performance.
Brilliant, Glare-Free Visual Quality
Equipped with a non-glare frontal panel, the PMH Series displays reduce natural and ambient light interference to ensure continuous readability in any location. Image visibility and information readability are deemed to be very high, because it is less reflective under light or sunlight, which poses no issues when used with QSR menu boards, or airport flight schedule boards with ample natural light.
Specifications:
| Samsung PM49H - PMH Series 49" LED Display Specifications | |
|---|---|
| Panel | |
| Screen Size | 49" |
| Panel Technology | 60Hz E-LED BLU |
| Resolution | 1920 x 1080 (Full HD) |
| 16:9 | |
| Pixel Pitch (mm) | 0.187(H) x 0.56(V) |
| Active Display Area (mm) | 1073.78(H) x 604.00(V) |
| Brightness (Typ.) | 500nit |
| Contrast Ratio | 4000:1 |
| Viewing Angle (H/V) | 178º/178º |
| Response Time (G-to-G) | 8ms |
| Display Colors | 10bit Dithering - 1.07Billion |
| Color Gamut | 72% |
| Haze | 25% |
| Display | |
| Dynamic C/R | Mega |
| H-Scanning Frequency | 30 ~ 81kHZ |
| V-Scanning Frequency | 48 ~ 75HZ |
| Maximum Pixel Frequency | 148.5MHz |
| Sound | |
| Speaker Type | Built in Speaker (10W + 10W) |
| Connectivity | |

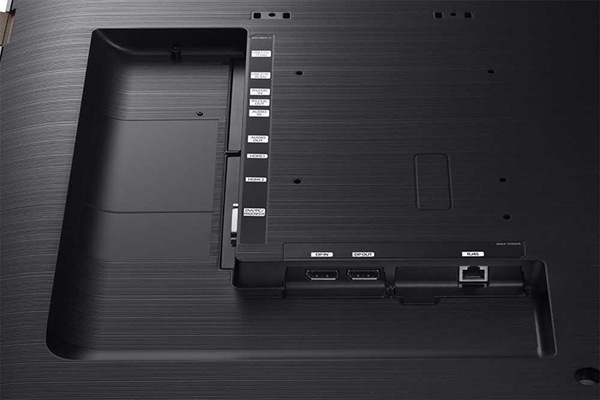

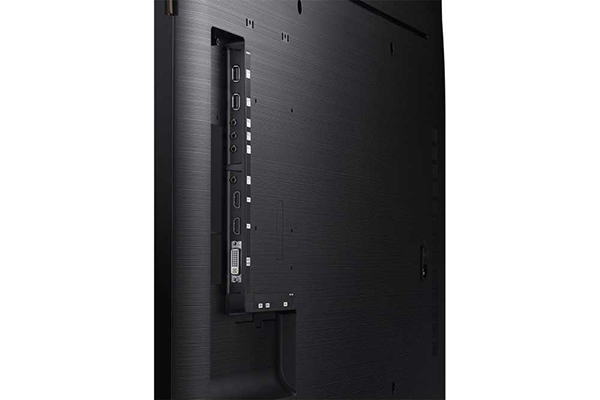

| Input | RGB: DVI-I (D-Sub Common), Display Port 1.2 (2) Video: HDMI 2.0 (2) / HDCP 2.2 HDCP: HDCP 2.2 Audio: Stereo mini Jack, RGB/DVI/HDMI USB: USB 2.0 x 2 |
| Output | RGB: DP1.2 (Loop-out) Audio: Stereo Mini Jack External Control: RS232C (in/out) thru Stereo Jack, RJ45 Tuner: Yes (only for NA) |
| External Control | RS232C (In / Out) thru Stereo Jack, RJ45 |
| Power | |
| Type | Internal |
| Power Supply | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz |
| Power Consumption (Typical/Max) | 47W / 165W |
| Power Consumption (Standby) | less than 0.5W |
| Environmental Conditions | |
| Operating Temperature | 32˚F - 104˚F |
| Operating Humidity | 10~80% |
| Features | |
| Key Features | Slim & Light Signage with Built-in MagicInfo S4, SSSP 4.0 |
| Special Features | Hardware: Non Glare Panel, Temperature Sensor, Video Wall(15x15(OSD)), Video Wall Daisy Chain(16), Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W x 2), WiFi Module Embedded, Tuner(only for NA), IP5x, Center IR Software: Magic Clone(to USB), Auto Source Switching & Recovery, RS232C/RJ45 MDC,Plug and Play, PIP/PBP, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(HDCP Support), Firmware Update by Network, New Home Screen, PC-less VideoWall(external source only), Multi Channel, Mobile Control, Event Schedule, Backup Player |
| SMART Signage Platform | Yes |
| 24/7 Operation | Yes |
| Wi-Fi | Yes |
| Internal Player | |
| Processor | Cortex-A12 1.3GHz Quad Core CPU |
| On-Chip Cache Memory | L1 (I/D) : 32KB / 32KB L2 (Unified) : 1MB |
| Clock Speed | 1.3GHz CPU Quad |
| Main Memory Interface | 2.5GB 3 channel 96bit DDR3-933 (1866MHz) |
| Graphics | 2D & 3D Graphics Engine
|
| Storage | 8GB (3.75GB Occupied by O/S, 4.25GB Available) |
| Multimedia | Video Decoder
|
| IO Ports | USB 2.0 |
| Operating System | Tizen 2.4 (VDLinux) |
| Dimensions | |
| Without Stand (W x H x D) | 43.1″ x 24.7″ x 1.2″ |
| Packaging (WxHxD) | 47.7″ x 28.3″ x 6.1″ |
| Bezel Width (mm) | Top: 9.0 / Side: 9.0 / Bottom: 11.0 |
| Weight | |
| Product Weight | 29.1 lbs |
| Package Weight | 38.5 lbs |
| Service | |
| Standard Warranty | 3 years onsite (Parts/ Labor/ Backlight) |
| Accessories | |
| Included in Box | Quick Setup Guide, Regulatory Guide , Warranty Card, Power Cord, Remote Controller, Batteries, RS232C(IN) adapter, Cover Jack |
| Optional Stand | STN-L4655E |
| Optional Wall Mount Kit | WMN4270SD |
| Specialty | CML450H |
| Optional Media Player | SBB |
| Certification | |
| Safety | CB (Europe) : IEC60950-1/EN60950-1 CCC (China) : GB4943.1-2011 PSB (Singapore ) : PSB+IEC60950-1 NOM (Mexico ) : NOM-001-SCFI-1993 IRAM (Argentina ) : IRAM+IEC60950-1 SASO (Saudi Arabia ) : SASO+IEC60950-1 BIS(India) : IEC60950-1 / IS13252 NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998 KC(Korea) : K 60950-1 EAC(Russia) : EAC+IEC60950-1 INMETRO(Brazil) : INMETRO+IEC60950-1 BSMI(Taiwan) : BSMI+IEC60950-1 RCM(Australia) : IEC60950-1/AS/NZS 60950-1 UL(USA) : cUL60950-1 CSA (Canada) : cUL TUV (Germany) : CE NEMKO (Norway) : CE |
| EMC | FCC (USA) Part 15, Subpart B Class A CE (Europe) : EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003 VCCI (Japan) : VCCI V-3 /2010.04 Class A KCC/EK (Korea) : Tuner : KN13 / KN20 Tunerless : KN22 / KN24 BSMI (Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) / CNS14972 (Digital) C-Tick (Australia) : AS/NZS CISPR22:2009 CCC(China) :GB9254-2008 GB17625.1-2012 GOST(Russia/CIS) : GOST R 51317 Series, GOST 22505-97 EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003 |
| Mechanical Specs | |
| VESA Mount | 400x400mm |

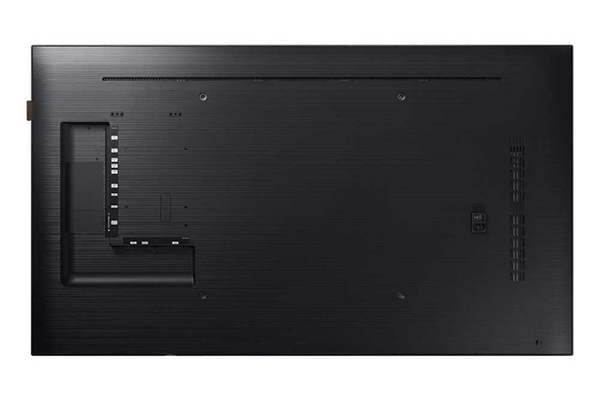

Images:
Documentation:
Download the Samsung PMH Series LED Displays Datasheet (.PDF)
