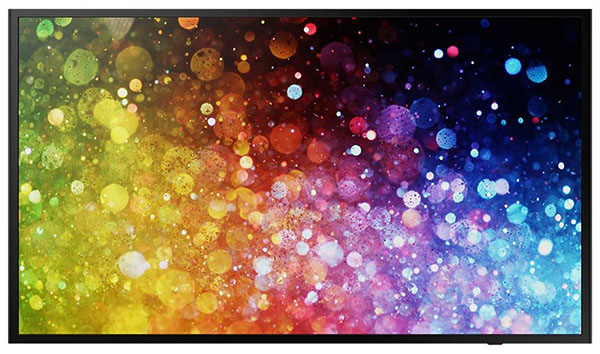

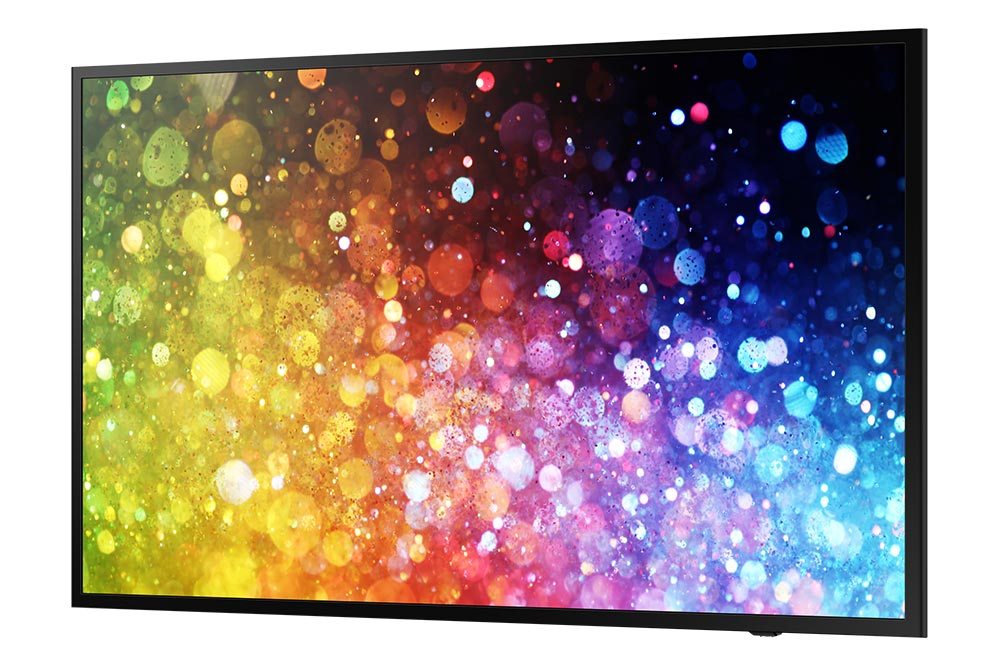

Samsung DC43J - DC-J Series 43" Edge-Lit LED Display for Business
An affordable, high-quality digital signage display featuring Full HD resolution, reliable 16/7 operation and intuitive content management
Sorry, this product is no longer available, But we do have similar products to show you click here
Overview:
Samsung's DC-J Series digital signage displays are Samsung's most affordable commercial-grade edge-lit LED displays. They are specially engineered for business applications and are designed for long hours of reliable, continuous operation. It is even easy to play a variety of content on demand with just a USB stick. And they are covered by a 3-year commercial warranty, to give you even more financial peace of mind.
- Improve retail and business communications through high-quality professional-grade displays
- Elevate content presentation through FHD picture quality and 300nit brightness
- Engage key audiences overlong durations with continuous 16/7 performance
- Manage and adjust content scheduling directly on the display with a remote control
- Integrate new content directly from connected USB drives
- Deliverimpactful content at reduced total cost of operation (TCO)

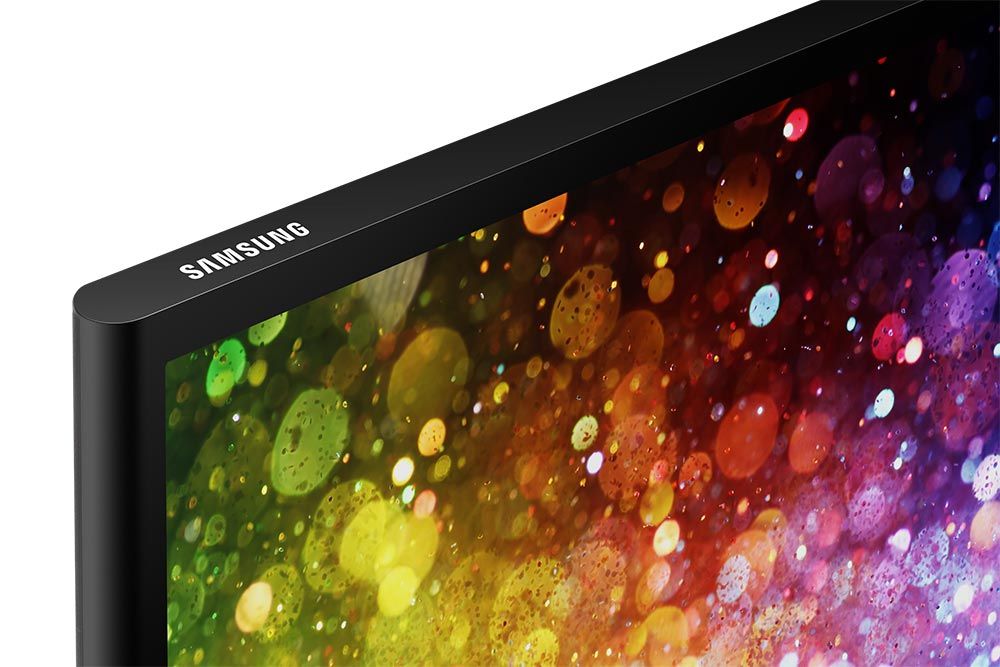

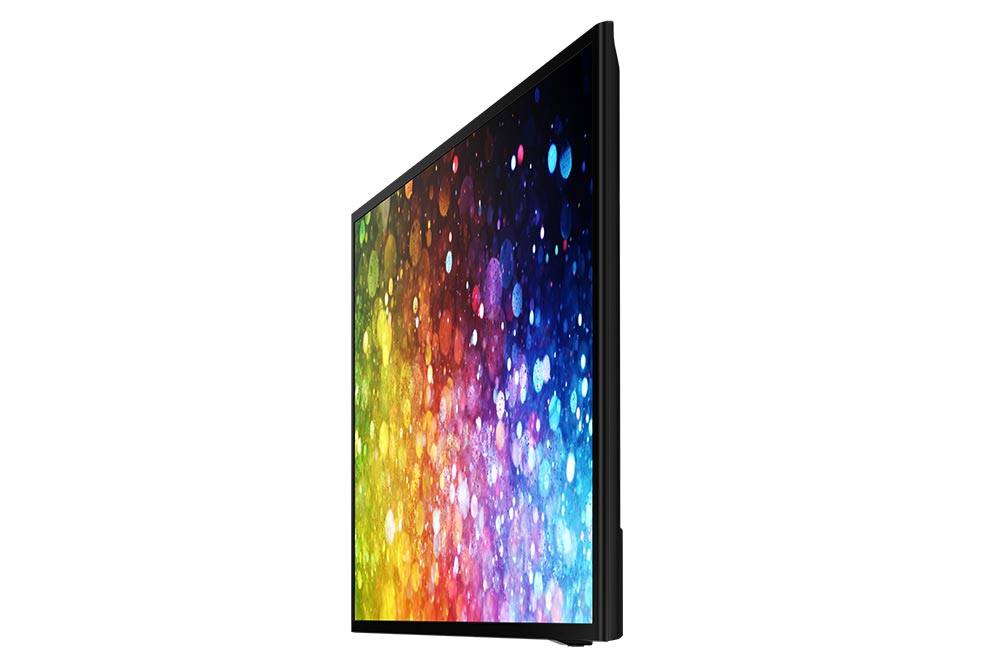

Samsung’s DCJ Series displays combine superior content presentation with reliability, offering business a versatile, cost-effective format to boost engagement and relay timely information. The displays relay audience-ready content with impressive FHD picture quality and continuous 300nit brightness, while also supporting the operational demands of various business environments through 16/7 performance. Each DCJ Series display also offers a multitude of embedded ports that extend connectivity for seamless content sharing, all while maintaining a sleek and stylish design that makes for a welcome addition to any environment.
Features:
Amplify Business Messaging
The DCJ series combines FHD resolution, 300nit brightness, and 16/7 reliability to boost engagement and relay timely information with superior content presentation.

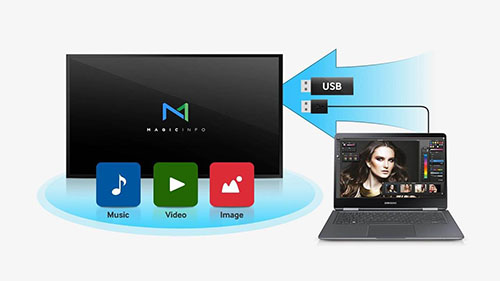

Load and Share with Ease
The embedded MagicInfo Lite Player allows users to conveniently load and play a wide range of content types. Simply plug in a USB device to the built-in port or access the internal memory to display the desired content on the screen.

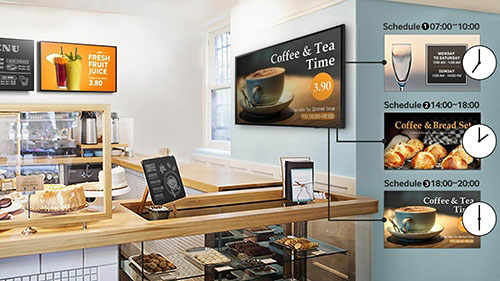

Simplify Content Scheduling
Utilize the Local Schedule Manager to seamlessly play content from the internal memory and/or a USB drive. For added convenience, configure playback settings and create schedules directly through the display with a remote control.

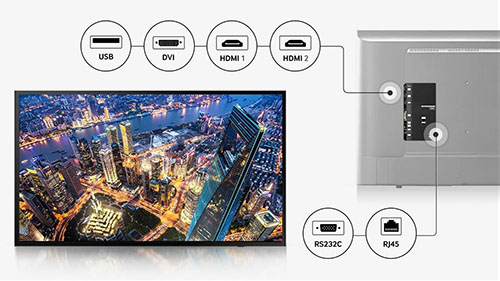

Diversify Connectivity Preferences

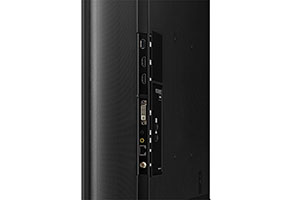

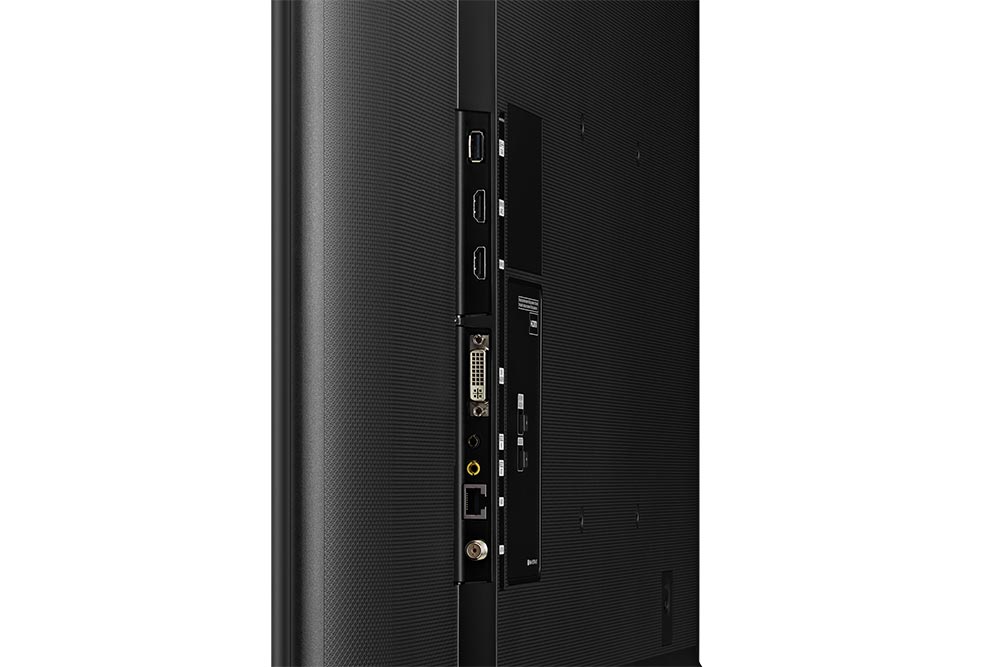

With a versatile interface including USB, DVI, HDMI, RS-232C and RJ45, easily connect and use a wide array of devices with the display.
Specifications:
| Samsung DC43J - DC-J Series 43" Edge-Lit LED Display Specifications | |
|---|---|
| Display | |
| Screen Size | 43" |
| Panel Technology | 60Hz Slim D-LED BLU |
| Resolution | 1920x1080 (Full HD) |
| Pixel Pitch (mm) | 0.16333(H) x 0.49005(V) |
| Active Display Area (mm) | 940.89(H) x 529.25(V) |
| Brightness (Typ.) | 300 nits |
| Contrast Ratio | 3000:1 |
| Viewing Angle (Horizontal/Vertical) | 178° / 178° |
| Response Time (G-to-G) | 8ms |
| Display Colors | 16.7 M |
| Color Gamut | 72% |
| Haze | 2% |
| Display | |
| Dynamic C/R | MEGA |
| H-Scanning Frequency | 30 ~ 81kHZ |
| V-Scanning Frequency | 48 ~ 75HZ |
| Maximum Pixel Frequency | 148.5MHz |
| Sound | |
| Speaker Type | Built in Speaker(10W + 10W) |
| Connectivity | |
| Input |
|
| Output |
|
| Power | |
| Type | Internal |
| Power Supply | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz |
| Power Consumption |
|
| Dimensions | |
| Product Dimensions | 38.79 X 22.62 X 2.89 in |
| Packaging Dimensions | 43.27 X 36.46 X 6.14 in |
| Bezel Width | 17.3" (Top), 18.3" (Bottom), 21.3" (Side) |
| Weight | |
| Product Weight | 17.42 lbs. |
| Shipping Weight | 25.57 lbs. |
| Environmental Conditions | |
| Recommended Usage Hours | 16/7 |
| Operating Temperature | 0°C - 40°C |
| Operating Humidity | 10%~80% |
| Features | |
| Key Features | Slim & Light LFD with Built-in MagicInfo Lite |
| Special Features | H/W: Super Clear Coating, Temperature Sensor, Pivot Display, Button Lock, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W x 2) S/W : Auto Source Switching & Recovery, RS232C/RJ45 MDC,Plug and Play (DDC2B), Built In MagicInfo Lite, Firmware Update by Network |
| Internal Player |
|
| Certification | |
| Safety | CB (Europe) : IEC60950-1/EN60950-1 - CCC (China) : GB4943.1-2011 - PSB (Singapore ) : PSB+IEC60950-1 - NOM (Mexico ) : NOM-001-SCFI-1993 - IRAM (Argentina ) : IRAM+IEC60950-1 - SASO (Saudi Arabia ) : SASO+IEC60950-1 - BIS(India) : IEC60950-1 / IS13252 - NOM(Mexico) : Tunerless : NOM-019-SCFI-1998 - KC(Korea) : K 60950-1 - EAC(Russia) : EAC+IEC60950-1 - INMETRO(Brazil) : INMETRO+IEC60950-1 - BSMI(Taiwan) : BSMI+IEC60950-1 - RCM(Australia) : IEC60950-1/AS/NZS 60950-1 - CSA (Canada) : cUL - UL(USA) : cUL60950-1 - TUV (Germany) : CE - NEMKO (Norway) : CE |
| EMC | FCC (USA) Part 15, Subpart B Class A - CE (Europe) : EN55022:2006+A1:2007, EN55024:1998+A1:2001+A2:2003 - VCCI (Japan) : VCCI V-3 /2010.04 Class A - KCC/EK (Korea) : Tunerless : KN22 / KN24 - BSMI (Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) CNS14972 (Digital) - C-Tick (Australia) : AS/NZS CISPR22:2009 - CCC(China) :GB9254-2008, GB17625.1-2012 - GOST(Russia/CIS) : GOST R 51317 Series, GOST 22505-97, EN55022:2006+A1:2007, EN55024:1998+A1:2001+A2:2003 |
| Accessories | |
| Included | Quick Setup Guide, Regulatory Guide, Warranty Card,Power Cord, Remote Controller, Batteries, RS232C(IN) adapter,ANT Shield Box(Only for KR) |
| Optional Mount | WMN4070SE |
| Optional Stand | STN-L4355F |
| Media Player | SBB (Not attatchable) |
Documentation:
Download the Samsung DC-J 43"/49" Edge-Lit LED Display Datasheet (.PDF)
