Samsung QB85R - 85-inch Commercial 4K UHD LED LCD Display, 350 NIT
Display any content in ultra-high definition with incredibly rich color on slim, efficient signage.

Samsung QB85R

Samsung QB85R - 85 in. Commercial 4K UHD LED LCD Display, 350 NIT

#QB85R
Our Price: Request a Quote

Get a Quote

Overview:

Through intelligent UHD upscaling technology, Samsung's QBR series performs edge restoration and noise reduction to deliver UHD picture quality even with lower resolution content. Backed by Tizen 4.0, the QBR series also provides reinforced capability with multiple web formats and secured protection. Additionally, its new slim design simplifi es wall mounting and ensures seamless installation.

Engage customers with lifelike images through ultra high-defi nition resolution
Deliver UHD-level picture quality even with lower resolution content through innovative UHD upscaling technology and unique picture-enhancing features
Dynamic Crystal Color allows viewers to enjoy a wider spectrum of colors, up to one billion shades
New symmetrical, slim design simplifi es installation and complements any environment.
Secure, PC-free operation through Knox and rigid three-layer protection

Industry trend

With visual display technology improving across devices, viewers have developed an ever-growing expectation for better picture quality. Additionally, the market has been fl ooded with a wide variety of color techologies and it's becoming increasingly important for businesses to have rich and vivid display capabilities. As UHD resolution continues to grow in popularity, it is essential for businesses to deliver superb picture quality for their customers. Low quality displays and signage can create negative perceptions of a business. While much content is still being produced at a lower resolution, through Intelligent UHD upscaling technology, Samsung's QBR series is able to upscale the low resolution content to UHD picture quality standards.

Why Samsung's QBR series?

Samsung's superior visual display technology has positioned them as the industry leader in the digital signage market for a decade1 and Samsung brand having been No.1 in sales for 12 consecutive years in TV by IHS Markit2 . As an expert in picture quality in the display industry, Samsung is able to deliver best-in-class picture quality through their new QBR series. The signage provides rich and fl awless colors, sleek and durable design, powerful performance through SSSP 6 and secured protection. Samsung's QBR series is also able to upscale the low resolution content to UHD picture quality. For commercial displays, this technology advancement means highly visible signage with unmatched accuracy to help capture the attention of potential customers. It also means savings both in cost and time for businesses who can produce content more inexpensively at a lower resolution and still display it in stunning UHD quality.

Features:

Incredible 4K picture quality

Samsung's new QBR series is able to capture customer attention by providing an incredibly clear picture, showcasing lifelike images and intricate details better than ever before thanks to ultra high-defi nition 4K resolution.

Intelligent UHD upscaling

Samsung's global leadership in display technology and picture quality spans more than a decade. Thanks to superior semi-conductor technology, Samsung has developed the powerful video processor available. Additionally, intelligent UHD upscaling technology is a cutting-edge solution based on Samsung's proprietary UHD Processor that allows content developed at a lower resolution to be elevated to UHD-level quality. It also performs edge restoration and noise reduction to optimize on-screen text and imagery with crisp edges and fi ne detail.

Dynamic Crystal Color

Dynamic Crystal Color is what brings the incredible, lifelike color to Samsung displays. Using 10-bit processing, the displays are able to showcase a wider spectrum of colors - up to a billion different shades - capturing subtle differences for fl awless color expression, critical to businesses in ensuring brand consistency across communication channels. The QBR series also features HDR+ functionality that converts standard defi nition (SDR) content to HDR quality for sharper contrast and more vivid colors.

Slim and symmetrical design

The all-new slim and symmetrical design of the QBR series signifi - cantly simplifi es wall mounting the display and ensures installation is a seamless process. The display's power inlet direction has been redesigned to sit fl ush against the wall. The new design sets guarantees a long life cycle ensuring the QBR series will stand the test of time.

Clean cable management

In a corporate or retail environment, the back of a display is often visible to customers. With the QBR series' new cable guide feature retailers can tuck messy cables away from view. This allows for a clean and more visually-appealing customer shopping experience.

Samsung Workspace secured by Knox

Samsung Workspace is a powerful new feature fortifi ed by proprietary Knox security technology allowing users to create an enhanced virtual collaboration workspace without needing a PC in the room, or any physical connection. Simply connect a keyboard and mouse to the display and immediately get to work accessing a PC remotely or web-based cloud services such as Microsoft Offi ce 365 and VMWare Horizon.

Powerful, all-in-one solution

The Samsung SMART Signage Platform (SSSP) is an open-source, all-in-one solution embedded in Samsung SMART signage that simplifi es installation and maintenance. With SSSP, there is no need for any external devices to communicate with the server or play digital media enjoying easy development, reinforced capability with multiple web formats, and secured protection.

Wi-Fi and Bluetooth built-in

The QBR series features a nearly endless range of business use-cases thanks to built-in Wi-Fi and Bluetooth. Wireless connectivity allows for personalized and interactive services including enabling integration with beacon technology in store, while also simplifying how businesses showcase content.

Industry standard certifi ed

QBR displays are EMC class B compliant, providing a safe and healthy viewing environment by meeting strict standards of electromagnetic wave emission and assuring reliable operation even near other electronic equipment. The displays are also registered by EPEAT, the global ecolabel for IT, confi rming the hardware is sustainable for the full product lifecycle, from design and production to energy use and recycling.

Specifications:

Model			QB85R	QB98T
Panel	Diagonal Size	Class	85"	98"
	Diagonal Size	Measured	84.5"	97.5"
	Type		Edge LED BLU	Direct LED BLU
	Resolution		UHD (3840 x 2160)	UHD (3840 x 2160)
	Pixel Pitch (mm)		0.4875 x 0.4875	0.562 x 0.562 (mm)
	Active DisplayArea		1872.0(H) x1053.01(V)	2158.848(H) x1214.352(V)
	Brightness(Typ.)		350	350
	Contrast Ratio (Typ.)		4000:1	1200:1
	Viewing Angle(H/V)		178/178	178/178
	Response Time (G to G)		8ms(Typ.)	8ms(Typ.)
	Display Colors		16.7M(True Display) 1.07B(Ditherd10bit)	16.7M(True Display) 1.07B(Ditherd10bit)
	Color Gamut		92% (DCI-P3, CIE 1976)	72%
	Operation Hour		16/7	24/7
	Haze		2%	25%
Display	Dynamic C/R		MEGA	MEGA
	H-Scanning Frequency		30 ~ 81kHZ	30 ~ 81kHZ
	V-Scanning Frequency		48 ~ 75HZ	48 ~ 75HZ
	Maximum Pixel Frequency		594MHz	594MHz
Sound	Speaker Type		Built in Speaker(10W +10W)	Built in Speaker(10W +10W)
Connectivity	INPUT	RGB	DVI-D	DVI-D, Display Port1.2 (1)
		VIDEO	HDMI 2.0 (2)	HDMI 2.0 (2)
		HDCP	HDCP 2.2	HDCP2.2
		AUDIO	Stereo Mini Jack, DVI/HDMI/Audio(Common)	Stereo mini Jack, DVI, HDMI
		USB	USB 2.0 x 2	USB 2.0 x 2
	OUTPUT	RGB	N/A	HDMI 2.0 (Loop-out)
		VIDEO	N/A	N/A
		AUDIO	Stereo Mini Jack	Stereo mini Jack
		Power Out	N/A	N/A
		USB	N/A	N/A
	EXTERNAL CONTROL		RS232C(in/out) thru stereo jack, RJ45	RS232C(in/out) thru stereo jack, RJ45
	EXTERNAL SENSOR		IR	IR
	Tuner		N/A	N/A
Power	Type		Internal	Internal
	Power Supply		AC100 - 240 V, 50/60 Hz	AC100 - 240 V, 50/60 Hz
	PowerConsumption	Max[W/h]	198	462
		Typical[W/h]	143	360
		Rating[W/h]	180	420
		BTU(Max)	675.2	1576.4
		Sleep mode	0.5	0.5
		Off mode	N/A	N/A
Mechanical Spec	Dimension(mm)	Set	1897.8 x1080.8 x 56.7	2195.8 x1250.8 x 96.5
	Dimension(mm)	Package	2090 x1247 x 260	2369 x1405 x 350
	Weight (kg)	Set	48.4	83
	Weight (kg)	Package	63.7	106
	VESA Mount		600 x 400	800 x 400
	Protection Glass		N/A	N/A
	Stand Type		N/A	N/A
	Bezel Width (Top/Side/Bot) (mm)		10.9mm(U/L/R), 12.9mm(B)	17.9
Operation	Operating Temperature		0℃~ 40℃	0℃~ 40℃
Operation	Humidity		10~80%	10~80%
Feature	Key		UHD Signage Display Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0	UHD Signage Display Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0
	Special	H/W	Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), IP5x Rating, Wi-Fi/BT	Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), Video Wall Daisy Chain(HDCP2.2:4EA,HDCP1.4:7EA), Wi-Fi/BT
	Special	S/W	Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting)	Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting)
	Internal Player (Embedded H/W)	Processor	Cortex A721.7GHz Quad-Core CPU	Cortex A721.7GHz Quad-Core CPU
		On-Chip Cache Memory	L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB	L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB
		Clock Speed	1.7GHz	1.7GHz
		Main Memory Interface	2.5GB LPDDR41.5GHz 64bit	2.5GB LPDDR41.5GHz 64bit
		Graphics	Graphic resolution :1920x1080 Output resolution : 3840x2160 (Scale up from graphic processing result.)	Graphic resolution :1920x1080 Output resolution : 3840x2160 (Scale up from graphic processing result.)
		Storage (FDM)	8GB (3.88GB Occupied by O/S, 4.12GB Available)	8GB (3.88GB Occupied by O/S, 4.12GB Available)
		Multimedia	Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 Audio Decoder : AC3 (DD), MPEG	Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 Audio Decoder : AC3 (DD), MPEG
		IO Ports	USB 2.0	USB 2.0
		Operating System	Tizen 4.0 (VDLinux)	Tizen 4.0 (VDLinux)
Certification	Safety		60950-1	60950-1
	EMC		Class A	Class A
	Environment		N/A	N/A
	Security		802.1x(WPA2 Enterprise) (‘20.1~) : EAP-TLS, EAP-TTLS, EAP-PEAP	802.1x(WPA2 Enterprise) : EAP-TLS, EAP-TTLS, EAP-PEAP
Accessories	Included		Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries	Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries
	Optional	Stand	N/A	N/A
		Mount	WMN8200SF / WMN8200SG	WMN8200SG
		Specialty	N/A	N/A
		Media Player	N/A	N/A

Images:

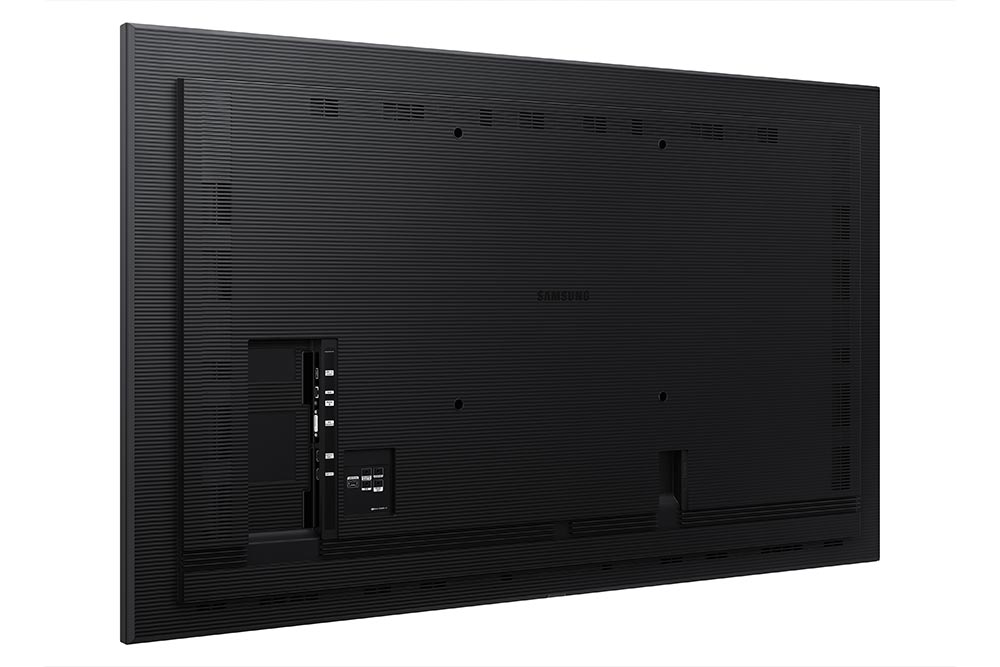

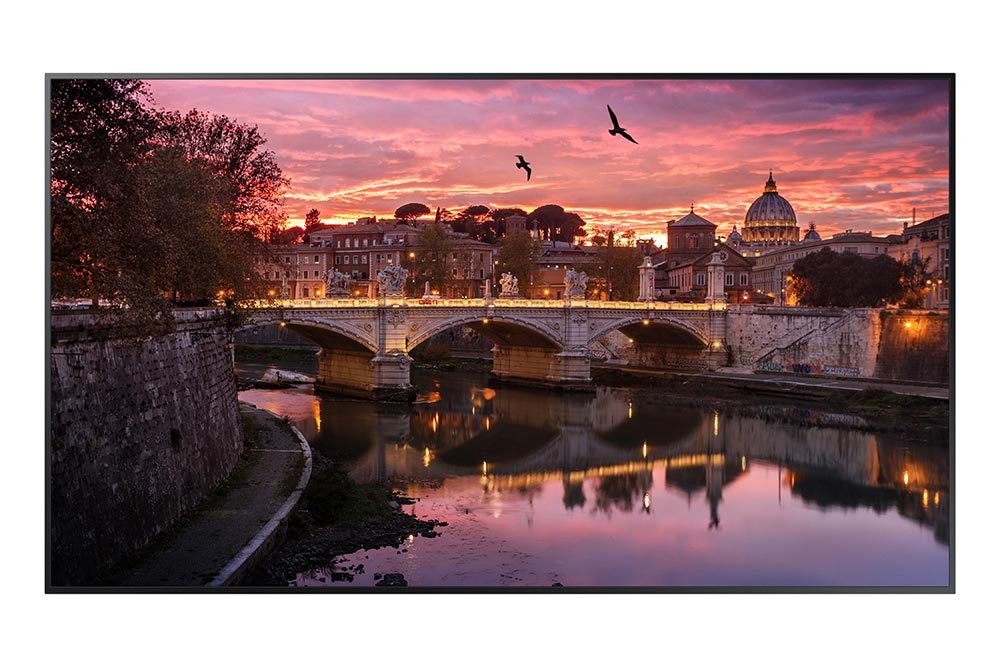

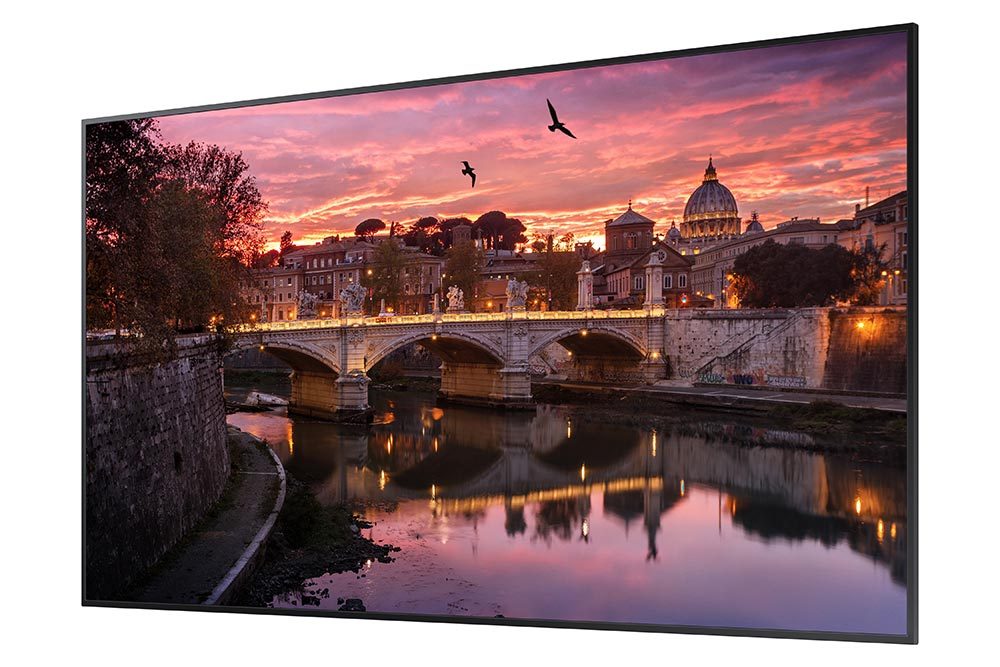

Samsung QB85R - 85-inch Commercial 4K UHD LED LCD Display, 350 NIT LED Display (Front)	Samsung QB85R - 85-inch Commercial 4K UHD LED LCD Display, 350 NIT LED Display (Right Perspective)	Samsung QB85R - 85-inch Commercial 4K UHD LED LCD Display, 350 NIT LED Display (Right Dynamic)

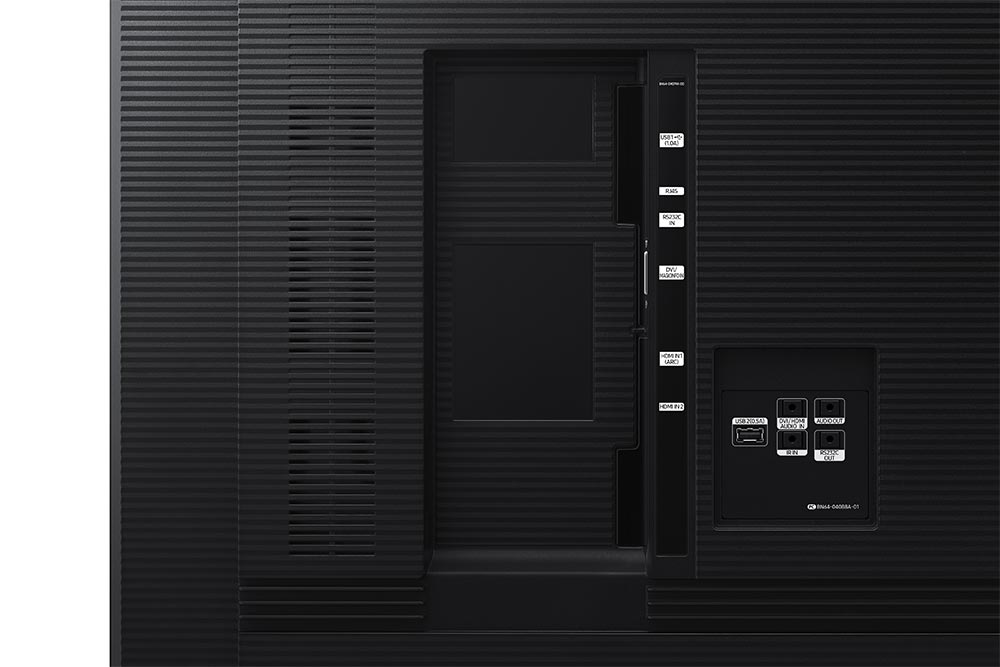

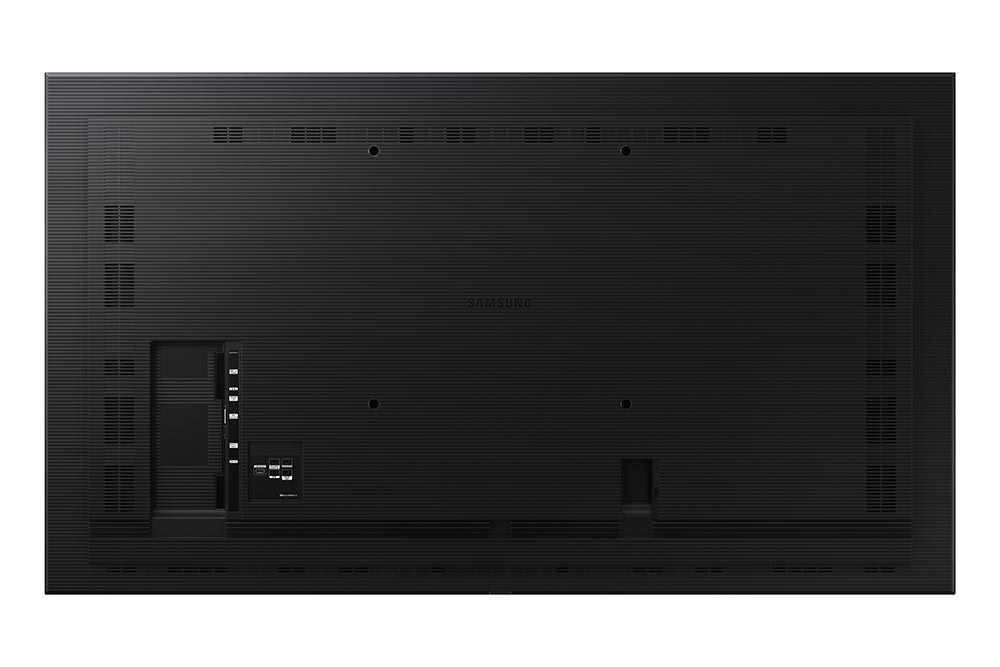

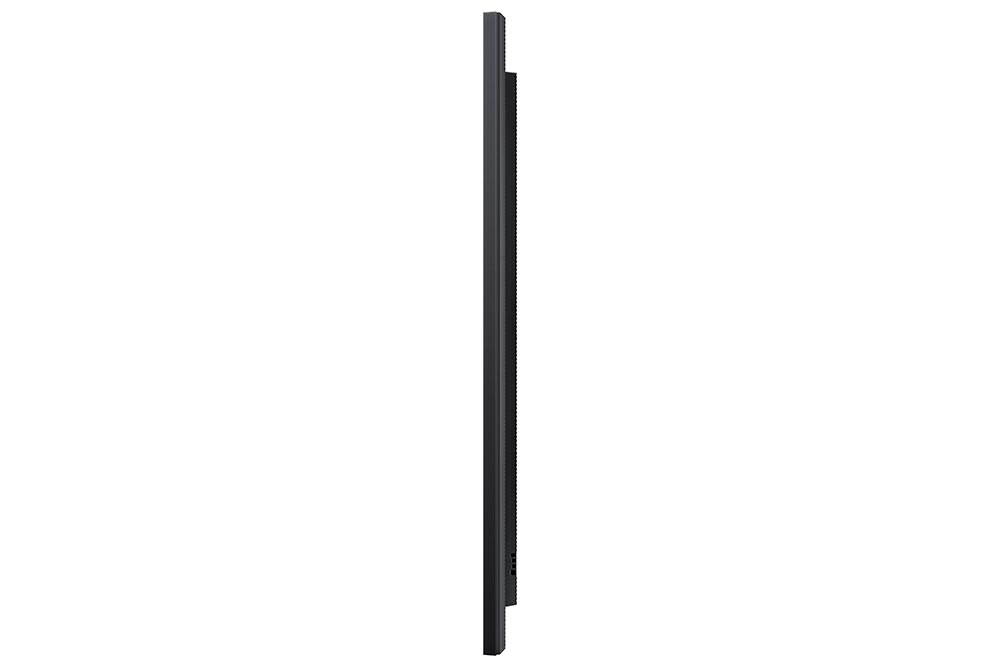

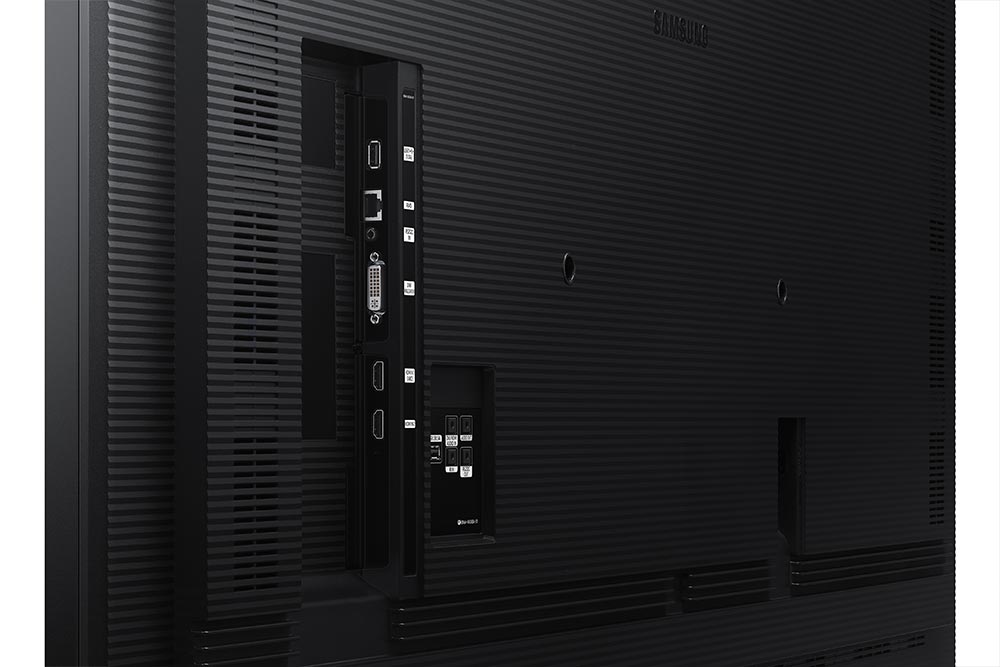

Samsung QB85R - 85-inch Commercial 4K UHD LED LCD Display, 350 NIT LED Display (Rear View)	Samsung QB85R - 85-inch Commercial 4K UHD LED LCD Display, 350 NIT LED Display (Side View)	Samsung QB85R - 85-inch Commercial 4K UHD LED LCD Display, 350 NIT LED Display (In/Out Detail)
Samsung QB85R - 85-inch Commercial 4K UHD LED LCD Display, 350 NIT LED Display (In/Out Detail)	Samsung QB85R - 85-inch Commercial 4K UHD LED LCD Display, 350 NIT LED Display (In/Out Detail)
