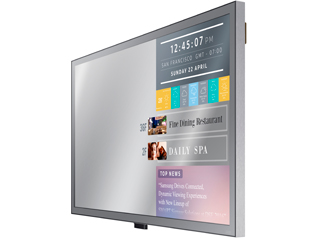

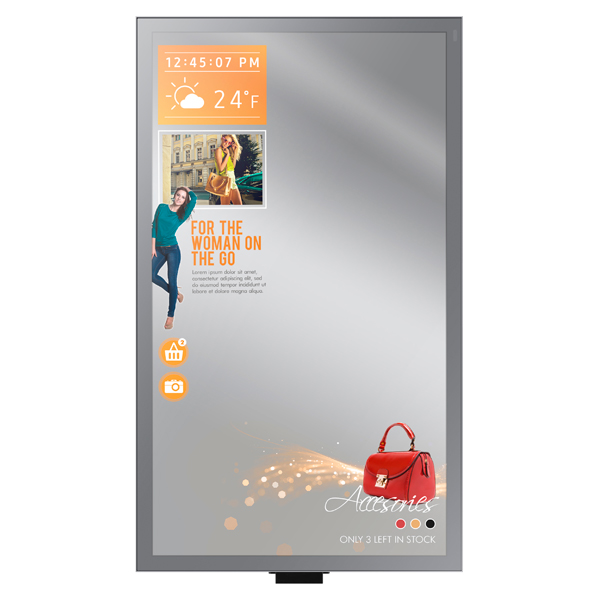

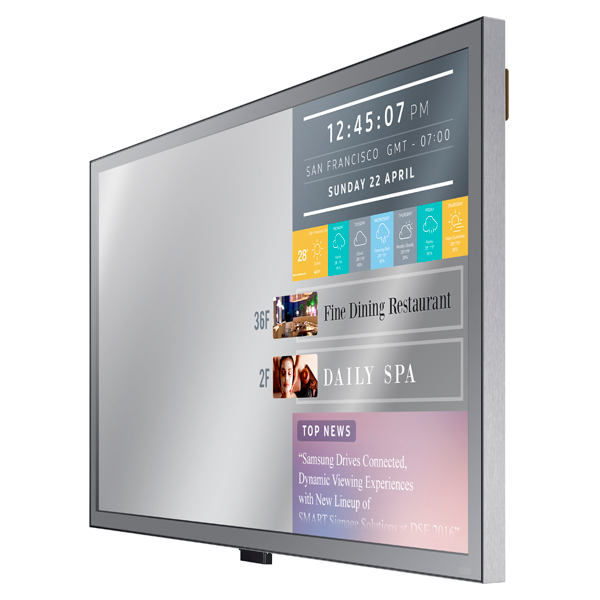

Samsung ML32E - ML-E Series 32" Direct-Lit LED Mirror Display for Business
Innovative, sophisticated mirror videowall displays
This product is no longer available, replaced by the ML55E - ML-E Series 55" Direct-Lit LED Mirror Display
Overview:
Dazzle your customers with these innovative, sophisticated mirror videowall displays. Samsung's ML-E Series are pre-assembled at the factory with mirror glass and a metallic side frame for an easy-to-install, cost-efficient solution. Featuring enhanced System-on-Chip (SoC) performance with a Proximity Sensor, plus a seamless design with high reflectance and image transmittance, they move intuitively between an impressive mirror effect and vibrant content to attract and keep customer attention.
- Innovative yet cost-efficient mirror displays with 300nits brightness and 24/7 runtime
- Enhanced System-on-Chip (SoC) performance with a Proximity Sensor

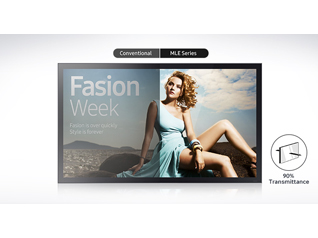

- High reflectance and image transmittance deliver an impressive mirror effect and vibrant content
- Seamless front glass design and metallic side frame are pre-assembled at the factory for easy installation
Features:

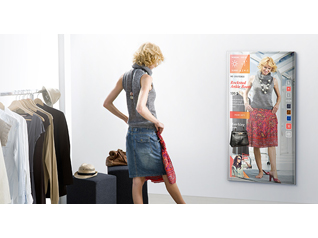

Dazzle Your Customers

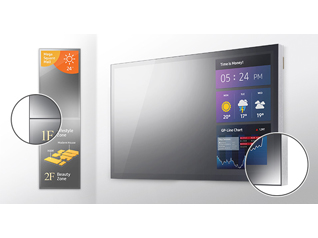

Create beautiful mirror videowalls thanks to the elegant, virtually bezel-free design that allows your customers to focus on your content. The high reflectance and image transmittance of the display deliver an impressive mirror effect and vibrant quality that is sure to dazzle.
Move Intuitively Between Mirror and Content

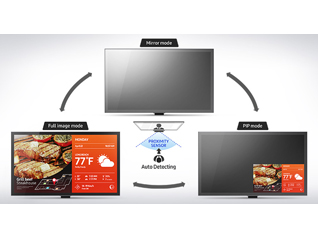

Entice your customers from a distance and keep their attention up close thanks to enhanced System-on-Chop (SoC) performance with a Proximity Sensor that kicks in from 2-4 feet away and allows the display to move intuitively between mirror and content. Plus, a variety of seamless transition options including full image shrinking to small image and vice versa let you dynamically stylize your message.
Install with Ease
These displays are pre-assembled at the factory with mirror glass and a metallic side frame for easy installation. And they are cost-efficient to serve as an innovative replacement of traditional mirrors or static signage.
Attract Around the Clock
ML-E Series displays are built for 24/7 commercial use. With innovative cooling technologies, they'll perform reliably all day and all night. So you can catch customers' eyes around the clock.
Connect to a Variety of Sources

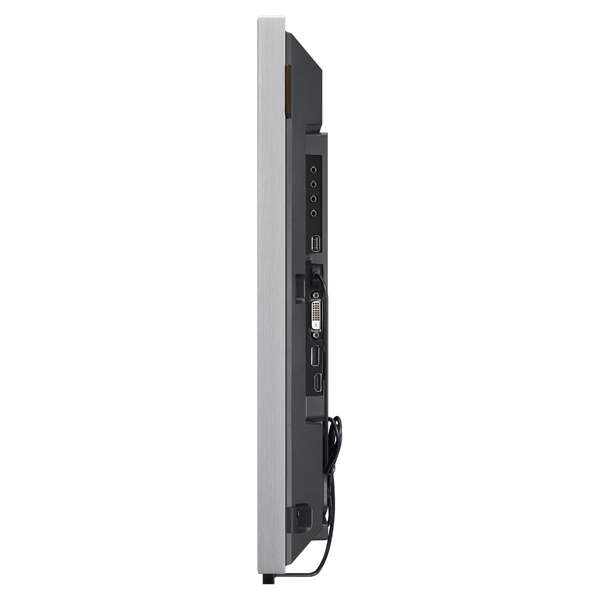

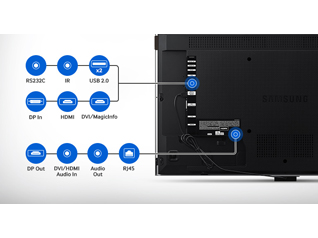

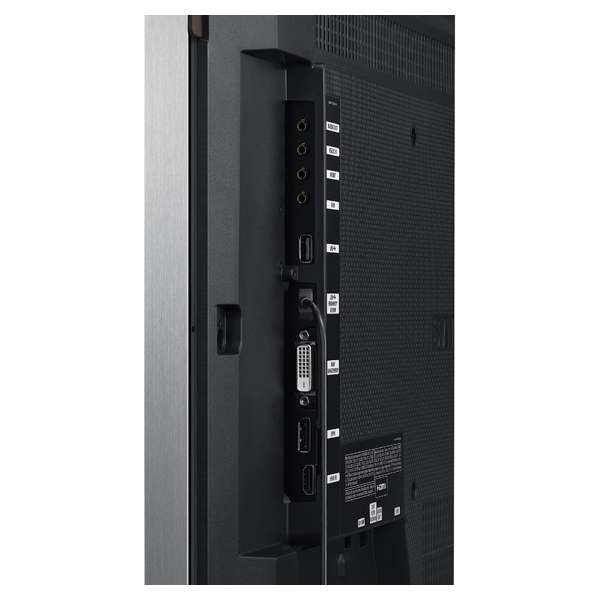

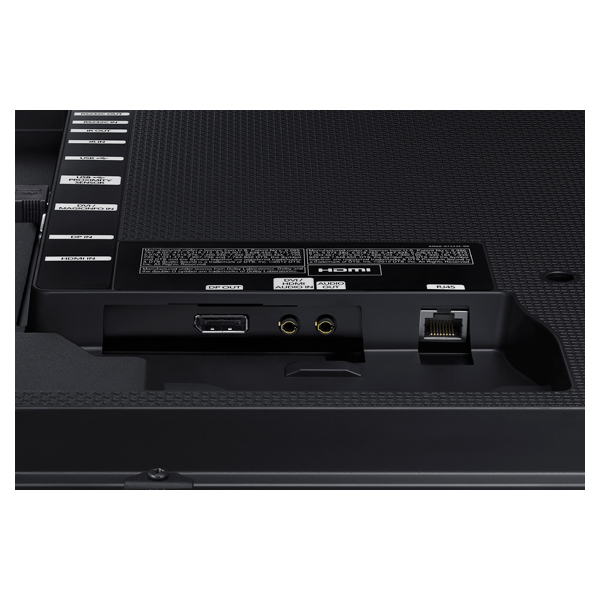

A variety of connectivity options meet your business needs including HDMI, DVI, D-Sub, Component/Composite inputs and RS232-C/RJ45 controls.
Reduce Power Consumption
Direct-lit LED display technology delivers sharp, high-resolution images, while saving energy and reducing costs for your business. Discover the performance and efficiency benefits of LED.
Specifications:
| ML32E - ML-E Series 32" Direct-Lit LED Mirror Display Specifications | |
|---|---|
| Panel | |
| Screen Size | 32" |
| Panel Technology | 60Hz D-LED BLU |
| Resolution | 1920x1080 |
| 16:9 | |
| Brightness | 300nit |
| Contrast Ratio (Typical) | 3500:1 |
| Contrast Ratio (Dynamic) | 50,000:1 |
| Viewing Angle (H/V) | 178/178 |
| Response Time | 8 ms |
| Connectivity | |
| Input | RGB In: DP1 Video In: HDMI Audio In: Stereo Mini Jack, DVI Audio (Common) USB: USB 2.0 X 2 |
| Output | Audio: Stereo mini Jack |
| External Control | RS232C(in/out) thru stereo jack, RJ45 |
| Sensor | IR, Proximity Sensor |
| Power | |
| Power Supply | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz |
| Power Consumption (Typical/Max) | Max:77W, Typical:55W |
| Power Consumption (Standby) | 0.33 W |
| Environmental Conditions | |
| Operating Temperature | 0°C~ 40°C |
| Operating Humidity | 10~80 % |
| Features | |
| Special | HARDWARE: Super Clear Coating, Temperature Sensor, Video Wall(15x15), Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W x 1), WiFi Module Embedded SOFTWARE: Magic Clone(to USB), Auto Source Switching & Recovery, RS232C/RJ45 MDC,Plug and Play, PIP/PBP, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(HDCP Support), Built In MagicInfo Player S3, Firmware Update by Network, LFD New Home Screen, PC-less VideoWall, Predefined Template for Vertical Usage, Multi Channel, Mobile Control, Event Schedule, Backup Player, PC-less Touch, MagicPresenter |
| Media Player Type | Embbeded, SBB(Not Attachable) |
| 24/7 Opertation | Yes |
| Wi-Fi | Yes |
| Videowall/Thin Bezel | Yes |
| Built-in Speakers | 10W x1 |
| Dimensions | |
| Without Stand (W x H x D) | 29.14" x 17.07" x 2.26" |
| Packaging (W x H x D) | 32.17" x 19.8" x 5.75" |
| Bezel Width | 0.04" (Black Printing Line 0.8") |
| Weight | |
| Product Weight | 17.42 lbs. |
| Package Weight | 21.6 lbs. |
| Included in Box | |
| Included in Box | Quick Setup Guide, Regulatory Guide, Warranty Card, Power Cord, Remote Controller, Batteries, RS232C(IN) adapter, Cover-Jack, Screw (M3L8, 1EA) (M4L8, 4EA) |
| Optional Wall Mount Kit | WMN4070SD |
| Optional Stand | STN-L3240E |
| Optional Media Player | SBB (Optional) |
| Green Management | |
| Energy Star® Certified | ENERGY STAR 7.0 |
| ROHS Compliant | Yes |
| Emission Standard | EMC |
| Packaging Recyclability | Packing Materials Recyclable |
| Mechancial Specs | |
| Vesa Mount | 200 x 200 mm |
| Operation | |
| Operating Temperature | 0°C - 40°C |
| Operating Humidity | 10 - 80% |
Images:
Documentation:
Samsung MLE Series Datasheet (.PDF)
