Samsung OM75D-K - OMD-K Series 75" High Brightness Display
Our OMD-K Series LED Displays Deliver High Brightness For Excellent Legibility And Visibility.
This product is no longer available, please contact us for a replacement.
Overview:
Samsung OMD-K Series High Brightness Displays provide easily readable text and bright graphics in high ambient light environments and outdoor applications, along with all-weather durability when installed in a customized housing.* And with our SMART Signage Platform, you can manage your content without external devices.
- Featuring All-Weather Durability When Installed in a Customized Housing*
- LED Backlit Panel, SMART Signage Platform and MagicInfo Software
- Connectivity Options Including VGA, Display Port, HDMI, DVI, Embedded Wi-Fi, RS232C, RJ45 LAN and an SD Card Slot
- 3-Year Onsite Warranty and 24/7 Operating Runtime
Features
High Brightness
At 2500 nits, our OMD-K Series LED displays deliver high brightness for excellent legibility and visibility, even in high ambient light environments.
Handle Outdoor Locations and High Ambient Light
These displays provide easily readable text and bright graphics in high ambient light and outdoor locations. With the included panel kit for installing the display in a custom-built enclosure, they can fully perform in heat, cold, rain, snow and dust.* VESA compliance allows for easy mounting inside the custom enclosure.
Circular Polarizing Technology
Samsung's circular polarizing technology allows for viewing content on the display while wearing polarized sunglasses.
SMART Signage Platform
SMART Signage Platform offers a fully embedded solution that eliminates the need for additional external devices. System on Chip (SoC) delivers media player functionality, and content is easily controlled through Samsung MagicInfo software.
Flexible Connectivity

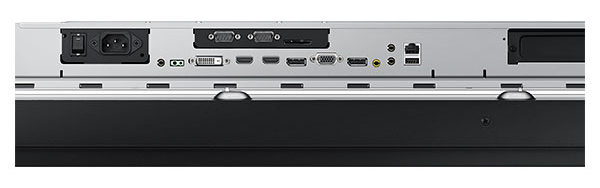

Get access to content from a variety of sources. Connections include PC (VGA), Digital (Display Port, HDMI and DVI), embedded Wi-Fi, RS232C for external control capability and an SD card slot.
Commercial Reliability
Built to handle 24/7 continuous operation, you'll be able to deliver impactful messaging to your audience around the clock, while a 3-year onsite warranty secures your investment and peace of mind.
Perfect for Various Industries
Samsung OMD-K Series High Brightness Displays are perfect for transportation hubs, banking offices, retail storefront windows, sports arenas, convention centers, drive-through menu boards and many more applications.
*Outdoor environment requires custom designed weatherproof enclosure.
Specifications:
| Samsung OM75D-K - OMD-K Series 75" High Brightness Display Specifications | |
|---|---|
| Series Name | |
| Screen Size | 75" |
| Brightness | 2,500 nits |
| Panel Technology | Direct Lit |
| Contrast Ratio (Typical) | 5,000:1 |
| Resolution | 1920x1080 |
| Viewing Angle (H/V) | 178°/178° |
| 16:9 | |
| Response Time | 8ms |
| Connectivity | |
| Input | VGA (D-sub 15 pin), DVI-D, Display Port 1.2 HDMI (2), Component/Composite, Stereo Mini Jack |
| Output | Display Port 1.2 (Loop-out) Stereo Mini Jack |
| External Control | RS232C(In/Out), RJ45 |
| Sensor | Detachable Type (IR, Ambient) |
| Power | |
| Power Supply | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz |
| Power Consumption (Typical/Max) | 550 |
| Power Consumption (Standby) | < 1W |
| Environmental Conditions | |
| Operating Temperature | 32ºF ~ 86ºF |
| Operating Humidity | 10~80% |
| Features | |
| Special | H/W: Temperature Sensor, Pivot Display, Button Lock, Wifi Embedded, Slide-in media player option S/W: Plug and Play, MagicInfo, Digital Daisy Chains, Lamp Error Detection, Anti Image Retention,, RS232C/RJ45 MDC, PIP/PBP, Video Wall(10x10), Smart Scheduling |
| 24/7 Operation | Yes |
| SMART Signage Platform | Yes |
| Outdoor | Yes |
| Media Player Type | Cortex-A9 1GHz Quad Core, 1.5GB DDR3, 8GB FDM, USB 2.0, Linux OS |
| Vesa Standard Wall-Mount Interface | 900 x 600 mm |
| Dimensions | |
| Without Stand (W x H x D) | 66" x 37.6" x 5" |
| Packaging (W x H x D) | 71.5" x 42.3" x 16.3" |
| Bezel Width | 9.3mm (L/R 7.9mm, Bottom 6.5mm) |
| Weight | |
| Package | 132.3 lb. |
| Service | |
| Standard Warranty | 3 Years On-Site (Parts / Labor / Backlight) |
| Accessories | |
| Optional Media Player | SBB-CF7, SBB-DA, SBB-DI |
| Green Management | |
| ROHS Compliant | Yes |
| Packaging Recyclability | Packing Materials Recyclable |
