Samsung QB65H - QBH-N Series 65" Edge-Lit 4K UHD LED Display for Business (Non Wi-Fi)
Exceed expectations while meeting your budget with large panels, 4K UHD resolution and an integrated media player
This product is no longer available. Please Contact Us for a replacement.
Overview:
With stunning 4K UHD quality and large-panel displays, Samsung's QBH-N Series digital signage delivers a big, beautiful picture to impress your audience, while keeping it affordable. State-of-the-art graphic performance and operational versatility combine in an all-in-one digital signage solution. Installation and content management are greatly simplified with the integrated internal CPU. And no external set-back box or PC is needed, so there’s nothing extra to purchase or install.
- Stunning 4K UHD picture quality at an affordable price
- All-in-one digital signage solution featuring an integrated media player
- Reliable 16/7 operation backed by a 3-year onsite warranty
- Versatile connectivity options to display a full range of exceptional content
Features:
Deliver Impactful Content through an All-Inclusive Display
Samsung’s QBH Series displays deliver content with visual impact while also improving operational efficiency. Through UHD picture quality, the displays foster an inviting and memorable viewing environment. Backed by the powerful SSSP 5.0 and TIZEN 3.0 operating system, the displays feature a host of business-ready functionalities while also protecting business data through enhanced security.
Enliven Commercial Content with UHD Picture Quality
Featuring state-of-the-art UHD picture quality, the QBH Series displays empower users to deliver more impactful messaging. Each QBH Series display showcases content with four times the ultra-realistic detail and clarity of standard alternatives, with a wider screen offering more space for imagery. When combined with performance features, such as portrait mode, this next-level presentation makes the QBH Series ideal for any commercial setting.
Enjoy Greater Operational Flexibility with the TIZEN OS
The QBH Series displays are among the first in Samsung’s lineup to feature the upgraded SSSP 5.0, backed by the powerful TIZEN 3.0 operating system. Through this integration, users receive a host of business-critical capabilities, ranging from secure in-platform application development to remote management. Not only do the QBH Series displays feature advanced graphic presentation, but the display also allows users to deliver targeted real-time messaging through the Beacon management technology.
Protect Business and Customer Data through Extensive Security
For government, financial and other information-based businesses, data protection is paramount for efficient operations. Samsung’s QBH Series displays accommodate this need through intense security measures. The embedded TIZEN 3.0 OS offers defense across the application, platform and system layers, restricting file and data access to an exclusive user base.
Enjoy a Consistent, Accelerated Refresh Rate through Versatile Connectivity
An upgrade on more limited alternatives, the QBH Series displays support a range of content and elevate overall display performance through both HDMI 2.0 and DP 1.2 port connectivity. This versatility ensures a consistent 60 Hz. refresh rate and optimal clarity regardless of the source.
Specifications:
| Samsung QB65H-N - QBH-N Series 65" Edge-Lit 4K UHD LED Display Specifications | |
|---|---|
| Display | |
| Screen Size | 65" |
| Panel Technology | 60Hz E-LED BLU |
| Resolution | 3840 x 2160 (4K UHD) |
| 16:9 | |
| Pixel Pitch (mm) | 0.105 x 0.315 (mm) |
| Active Display Area (mm) | 1428.48(H) x 803.52(V) |
| Brightness | 300nit |
| Contrast Ratio (Typical) | 4000:1 |
| Viewing Angle (H/V) | 178º/178º |
| Response Time | 8ms (Typ) |
| Display Colors | 16.7M (True Display) 1.07B (Ditherd 10bit) |
| Color Gamut | 72% |
| Haze | 2% |
| Display | |
| Dynamic C/R | Mega |
| H-Scanning Frequency | 30 ~ 81kHZ |
| V-Scanning Frequency | 48 ~ 75HZ |
| Maximum Pixel Frequency | 594MHz |
| Sound | |
| Speaker Type | Built in Speaker (10W + 10W) |
| Connectivity | |

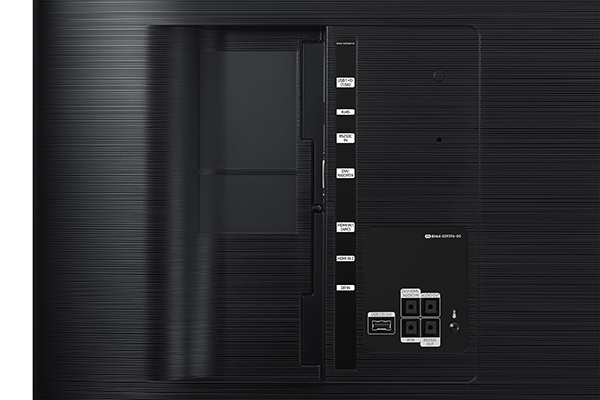

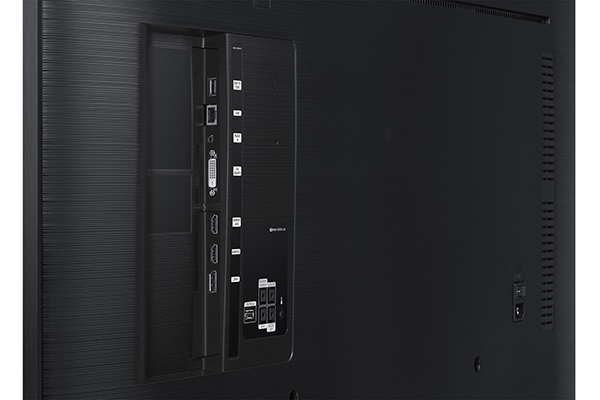

| Input | RGB: DVI-D, Display Port 1.2 (1) Video: HDMI 2.0 (2) HDCP: HDCP2.2 Audio: Stereo mini Jack, DVI, HDMI USB: USB 2.0 x 2 |
| Output | Audio: Stereo mini Jack |
| External Control | RS232C(in/out), RJ45 |
| Sensor | IR |
| Power | |
| Type | Internal |
| Power Supply | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz |
| Power Consumption | Max [W/h]: 122 Typical [W/h]: 165 BTU (Max): N/A Sleep mode: less than 0.5W Off mode: less than 0.5W |
| Environmental Conditions | |
| Operating Temperature | 0℃~ 40℃ |
| Operating Humidity | 10~80% |
| Recommended Usage Hours | 16/7 |
| Features | |
| Special Features | UHD Signage Display Slim & Light Signage with Built-in MagicInfo S5, SSSP 5.0 |
| Special | Hardware: Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), Wi-Fi Software: Auto Source Switching & Recovery,LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting) |
| Internal Player |
|
| Dimensions | |
| Without Stand (W x H x D) | 57.3" x 33" x 1.5" in |
| Package (WxHxD) | 61.8" x 37.6" x 8.3" in |
| Bezel Width | Top: 12.2 mm, Side: 12.2 mm, Bottom: 12.2 mm |
| Weight | |
| Product Weight | 50.2 lbs |
| Package Weight | 71.4 lbs |
| Service | |
| Standard Warranty | 3 Years Onsite (Parts/Labor/Backlight) |
| Included in Box | |
| Included in Box | Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries |
| Optional Wall Mount Kit | WMN6575SD |
| Optional Stand | STN-L6500E |
| Optional Media Player | SBB |
| Green Management | |
| ENERGY STAR Certified | ENERGY STAR 7.0 |
| Emission Standard | EMC Class A |
| Packaging Recyclability | Packing Materials Recyclable |
| Mechanical Specs | |
| VESA Mount | 400x400 |
