Samsung QB75H-TR - QBH-TR Series 75" Edge-Lit 4K UHD LED Interactive Display for Business and Education
Robust, all-in-one E-boards that feature enhanced touch technology and UHD picture quality
This product is no longer available. Please Contact Us for a replacement.
Overview:
Samsung's QBH-TR Series interactive displays feature an interactive touch screen for ease and functionality combined with stunning 4K UHD resolution that facilitates presentations, decision-making and collaboration in any meeting. Work with incredible picture quality, smooth and fast computing, and responsive touch capabilities for an immersive multimedia experience.
- Deliver a smooth, comfortable digital writing experience
- Enable up to four participants to write simultaneously with any tool
- Streamline efficient meeting facilitation via the embedded MagicIWB S5 solution
- Alternate between content sources with an intuitive UX
- Improve real-time interaction and introduce new ideas through advanced connectivity
- Elevate content quality with crisp UHD resolution
- Enhance meeting room sophistication through a stylish, pristine design
Today’s meeting rooms and classrooms require interactive capabilities that exceed those offered by projectors and whiteboards. Not surprisingly, more are turning to advanced displays that promote simultaneous collaboration. E-boards’ popularity, and revenue, only is expected to grow furtherin the nearfuture.
Samsung’s QBH-TR e-boards offer a versatile, all-in-one arena for improved collaboration. Enhanced touch technology, the intuitive MagicIWB S5 solution and UHD picture quality come togetherto boost productivity and collaboration by facilitating engaging, efficient interaction.
Features:
Revitalize Productive Collaboration
QBH-TR e-boards offer a versatile, all-in-one arena for improved collaboration. Enhanced touch technology, the intuitive MagicIWB S5 solution and UHD picture quality come together to boost productivity and collaboration by facilitating engaging, efficient interaction.
Enhance Touch, Enhance Capacity
Leverage heightened touch functionality for a smooth and versatile digital writing experience. Up to four users can write simultaneously using the provided pen or virtually any other tool.
Elevate Collaboration Quality

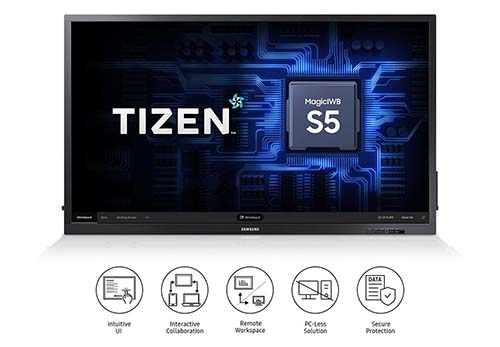

The embedded MagicIWB S5 solution facilitates discussion management and organization with an intuitive interface for quick access to vital collaborative functionalities such as screen mirroring and real-time notation saving.

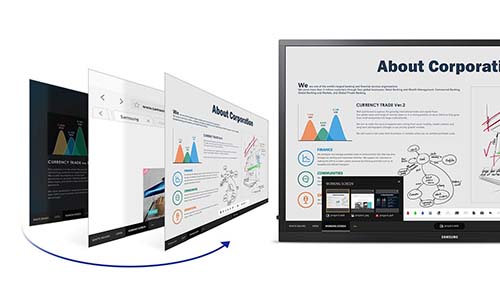

Switch Sources Seamlessly
Through the Working Screen function, users can quickly switch between multiple screens, such as the whiteboard, internet browser and connected input sources, with just a few touches.
Retrieve and Control Content Remotely
Pull and edit content on remote laptops directly through the central screen utilizing touch functionality. The powerful Knox system secures the Remote Workspace connection to protect against information leakage and meddling.

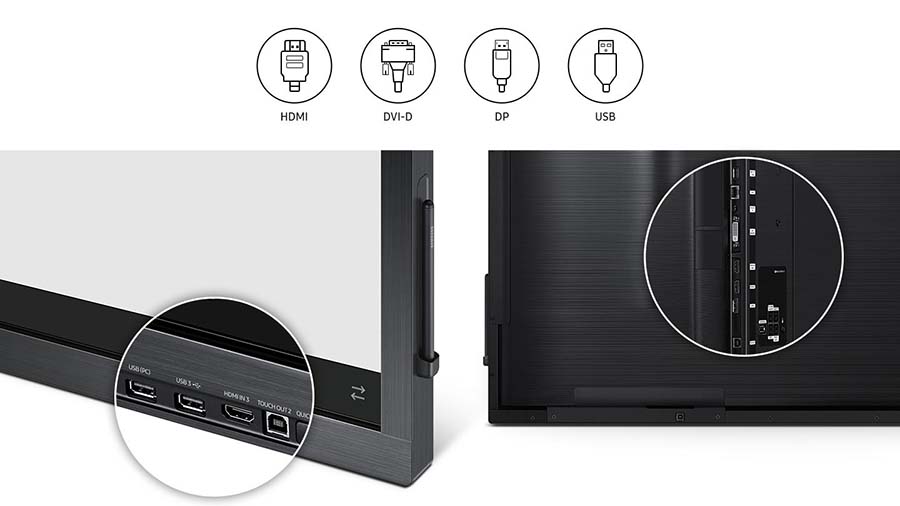

Connect with Convenience
Each e-board offers a wide range of connections including HDMI, DVI-D, DP and USB ports, where users can load, share and revise content directly from their personal devices.

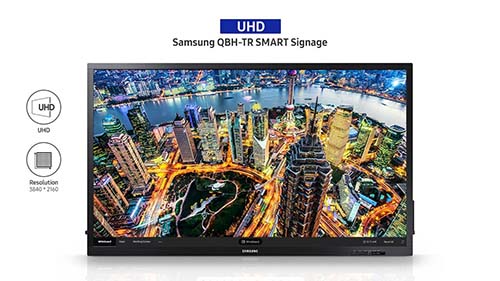

Amplify Visual Presentation
Bring collaborative ideas to life through advanced UHD picture quality. Through ultra-high resolution, ensure all notations and introduced content are clear and legible for every participant.
Maintain Organization with Style
Drive more organized collaboration with a sleek, sophisticated design. The magnetic side pen holder and frontal connection ports keep needed functions within reach, without the mess.
Specifications:
| Samsung QB75H-TR - QBH-TR Series 75" Edge-Lit 4K UHD LED Interactive Display Specifications | |
|---|---|
| Display | |
| Screen Size | 75" |
| Panel Technology | 120Hz Direct LED |
| Resolution | 3840 x 2160 (4K UHD) |
| Pixel Pitch (mm) | N/A |
| Active Display Area (mm) | N/A |
| Brightness (Typ.) | 250 nit |
| Contrast Ratio | Mega |
| Viewing Angle (Horizontal/Vertical) | 178° / 178° |
| Response Time (G-to-G) | 8ms |
| Display Colors | N/A |
| Color Gamut | N/A |
| Haze | N/A |
| Sound | |
| Speaker Type | Built in Speaker (10W x 2)(Down Firing w/Bass Reflex) |
| Connectivity | |
| Input |
|
| Output |
|
| Touch | |
| Type | IR (Infra Red) |
| # of Drawing | 4 drawing (SoC), 10 drawing (External Windows PC) |
| Touch Pen Type | Passive Pen |
| Object Recognition Range | 8mm |
| Touch Response Time | '7ms |
| Power | |
| Type | Internal |
| Power Supply | AC 100~240V 50/60Hz |
| Power Consumption |
|
| Mechanical Spec | |
| Product Dimensions | 1741.5 X 1012.1 X 86.8 mm |
| Packaging Dimensions | 1865 X 467 X 1152 mm |
| Product Weight | 54.8 kg |
| Shipping Weight | 68.4 kg |
| VESA Mount (mm) | 400 X 400 |
| Protection Glass | Yes |
| Stand Type | Wall Mount |
| Power Cable Length | 3m |
| Accessory | Pen Holder |
| Environmental Conditions | |
| Recommended Usage Hours | 16/7 |
| Operating Temperature | 0°C - 40°C |
| Operating Humidity | 10%~80% |
| Features | |
| Key Features | Slim & Light LFD with Built-in MagicInfo Player S5, SSSP |
| Special Features | H/W : Super Clear Coating, Temperature Sensor, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W x 2), WiFi Module Embedded S/W : MagicIWB S5 |
| Internal Player |
|
| Certification | |
| Safety | N/A |
| EMC | N/A |
| Accessories | |
| Included | Passive Pen, Power Cable |
| Optional |
|
Images:

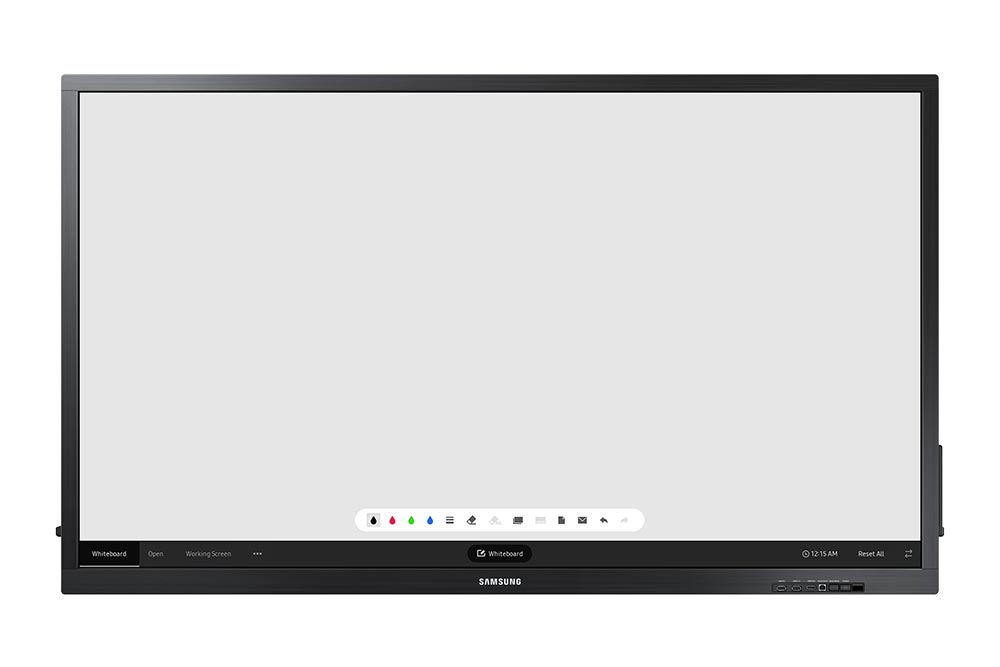

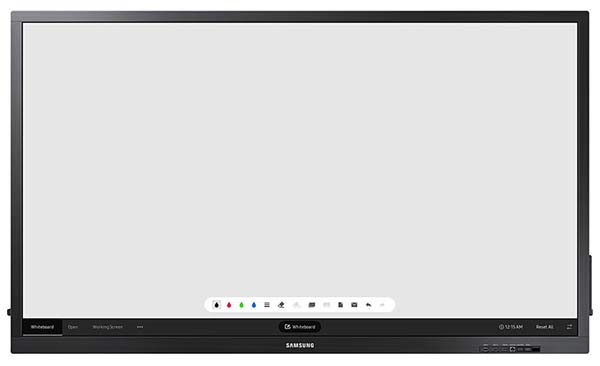

Front View |

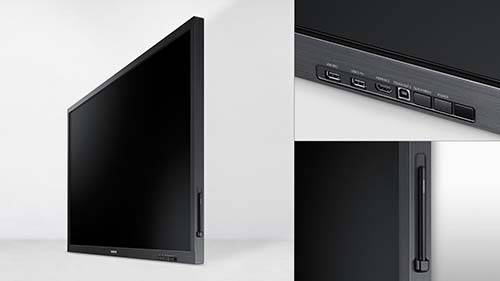

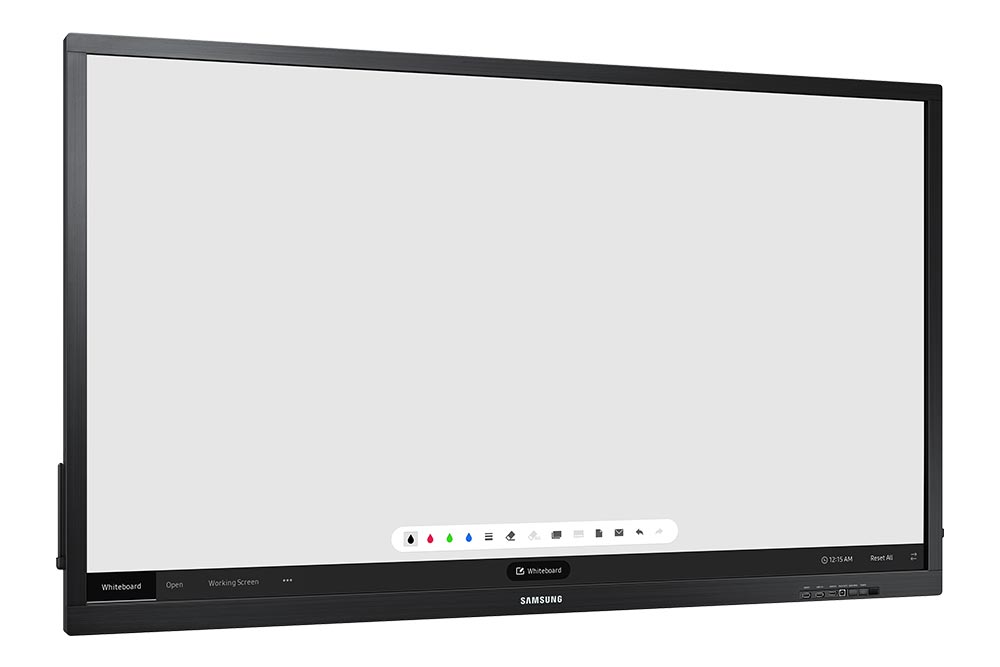

Left Perspective |

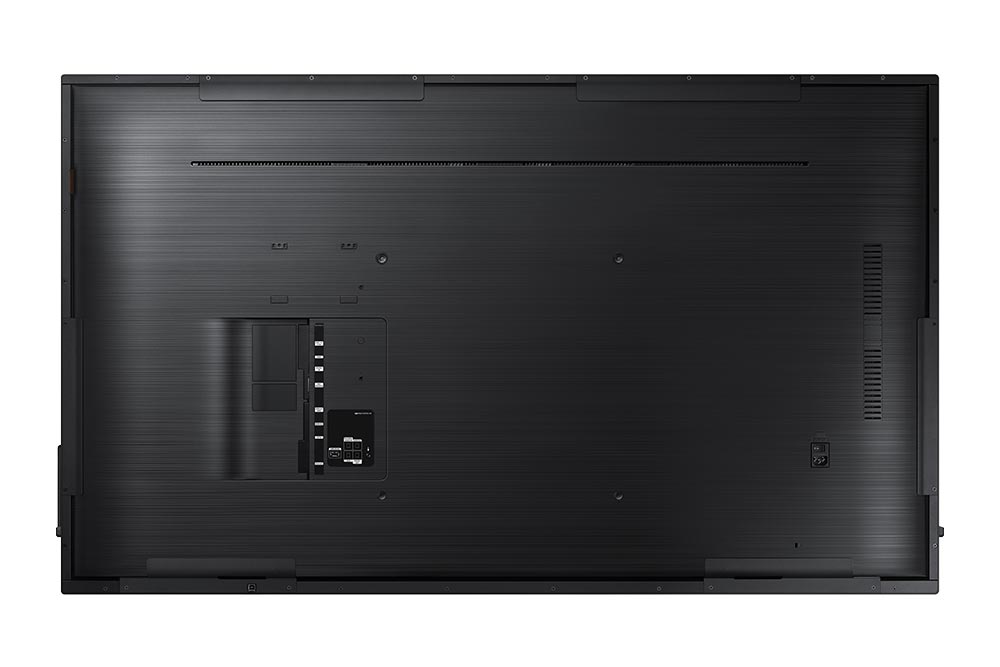

Back View |

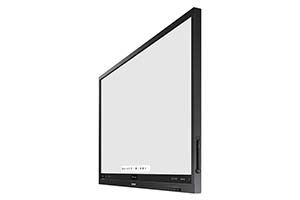

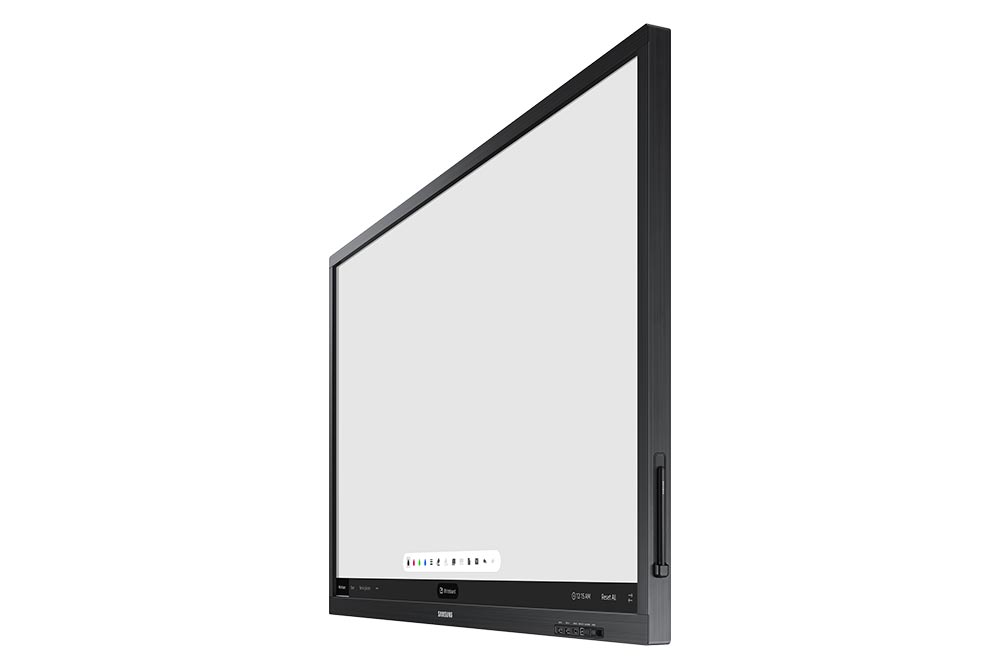

Dynamic |

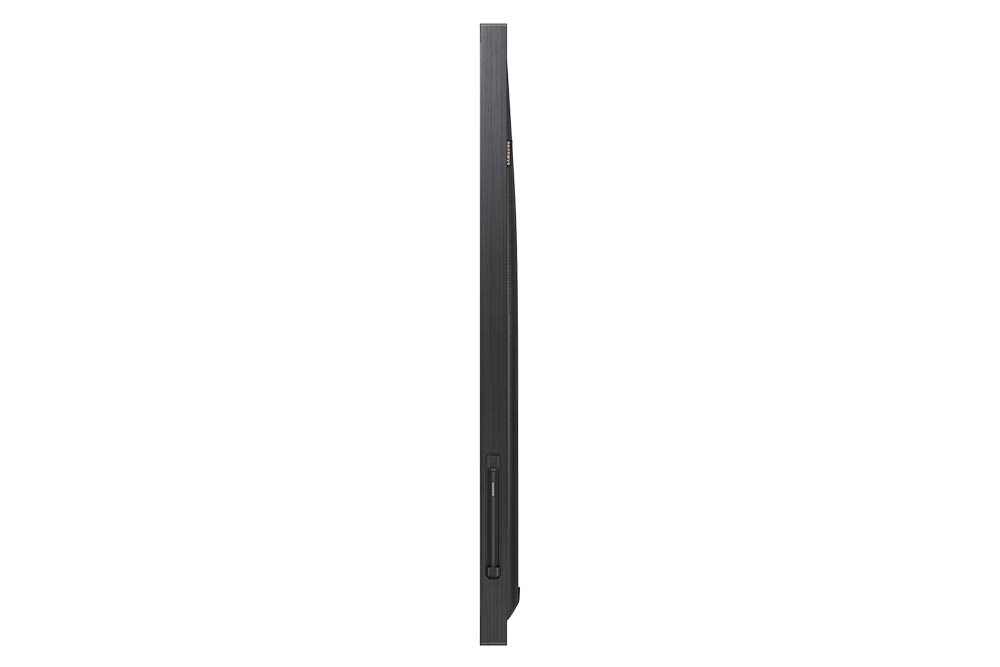

Side View |

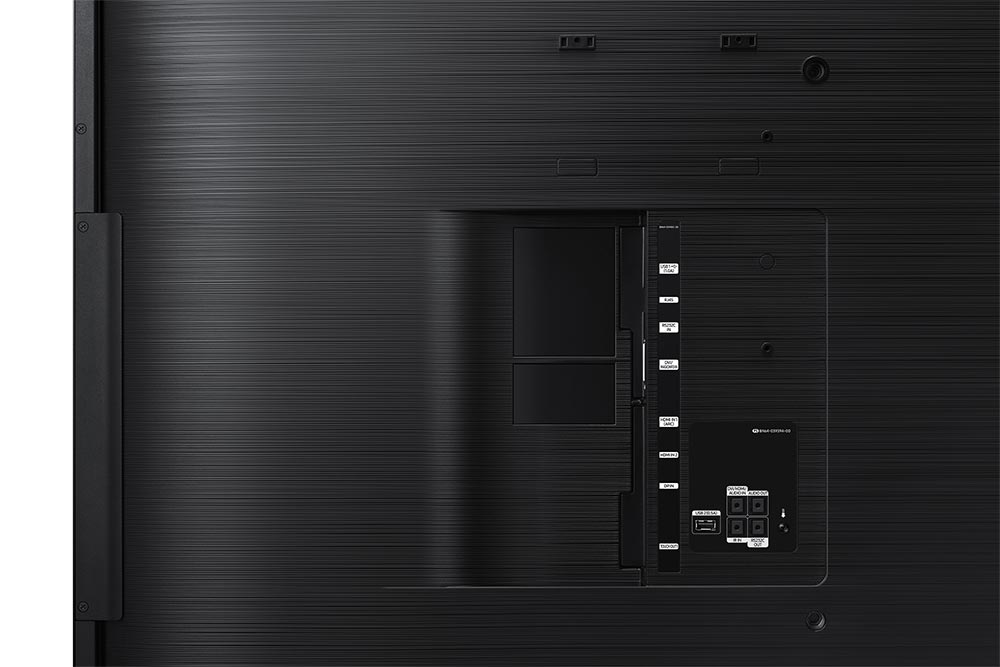

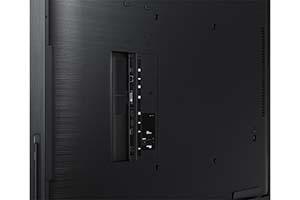

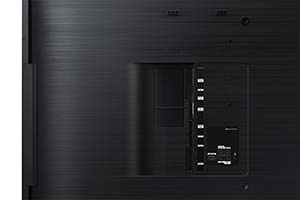

Back Detail |

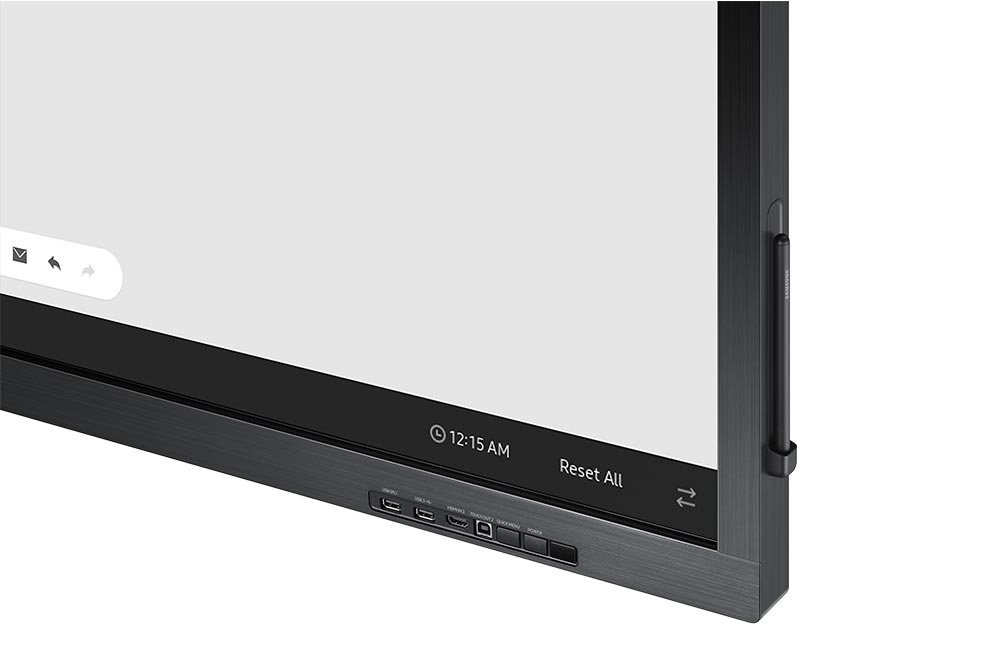

In/Out Detail |
Bottom View |

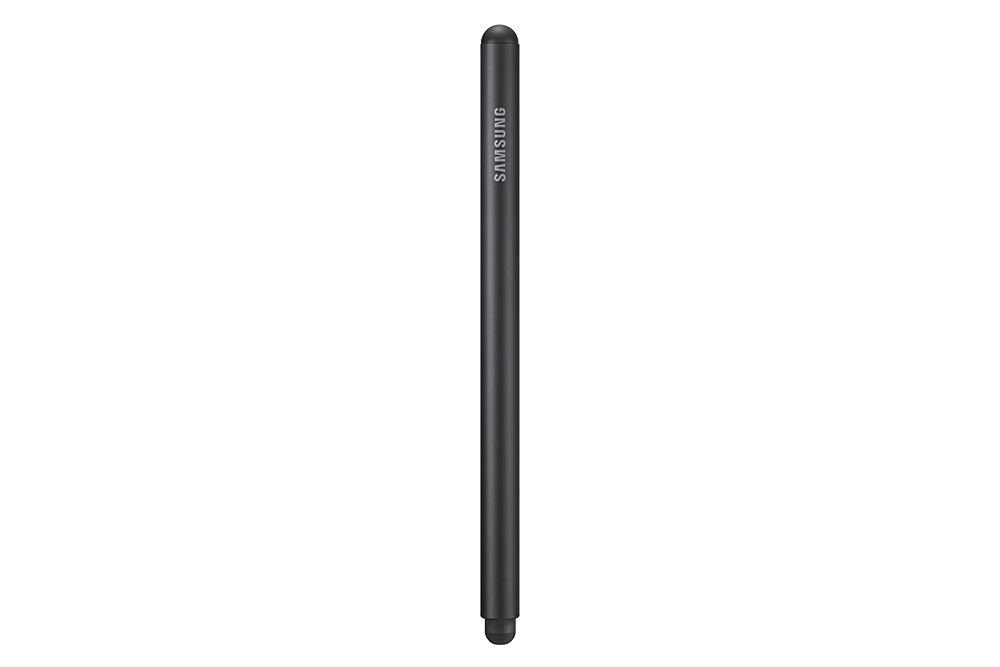

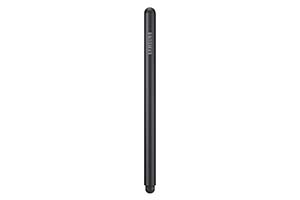

Pen View |
Documentation:
Download the Samsung QBH-TR Series Edge-Lit 4K UHD LED Interactive Display for Business and Education Datasheet (.PDF)
