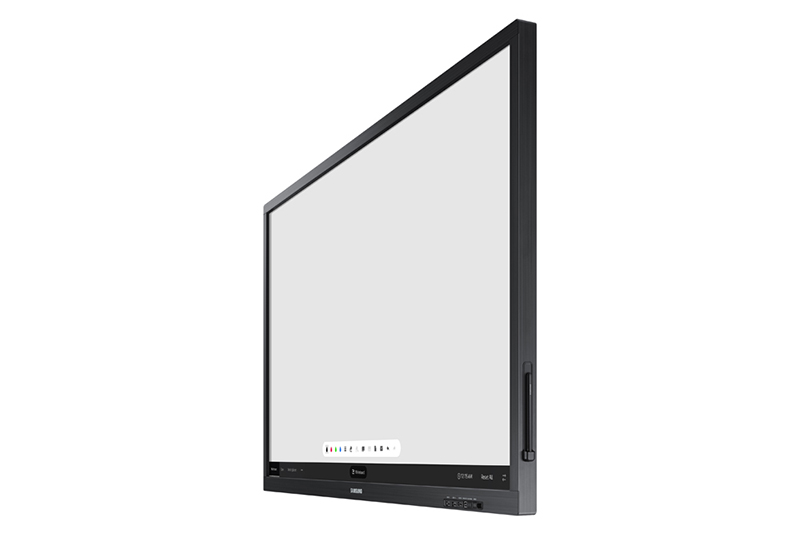

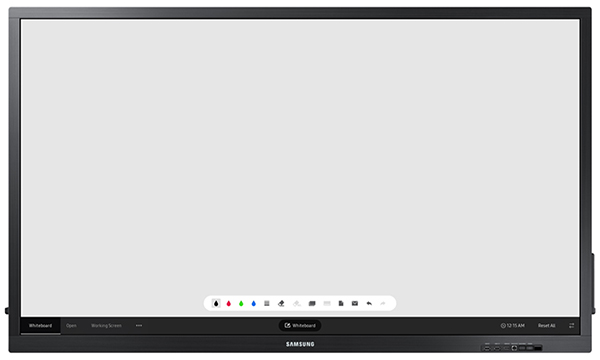

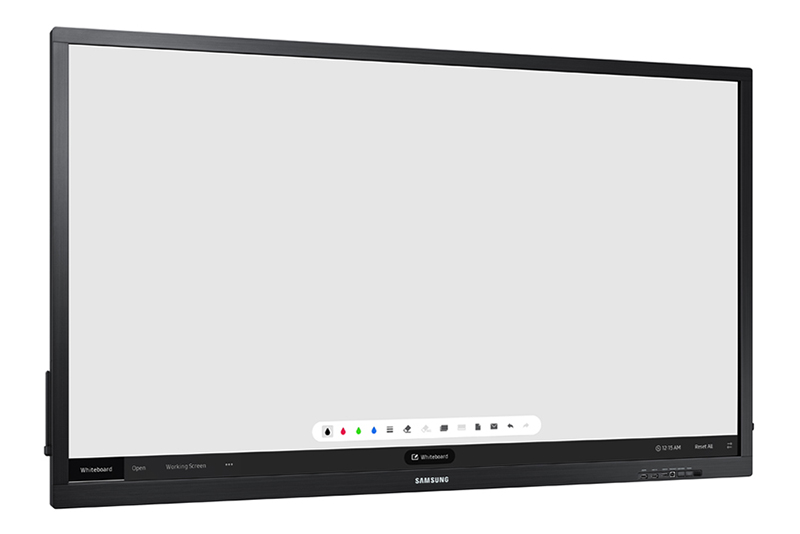

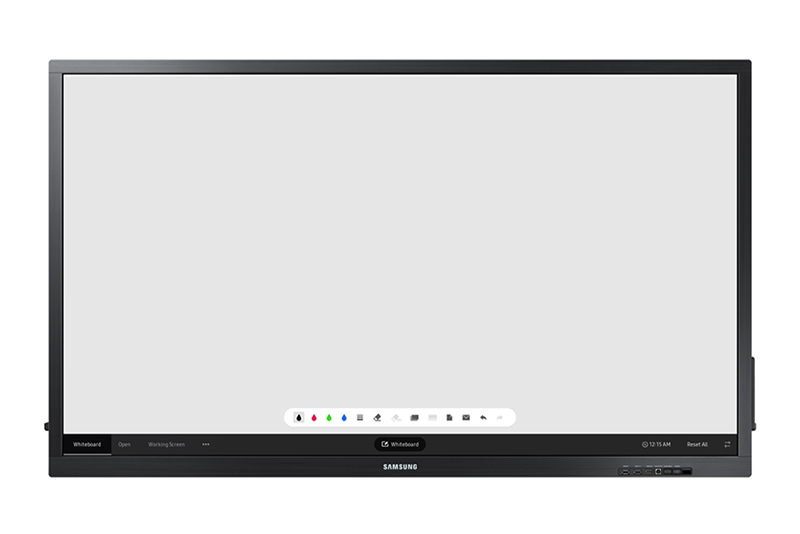

Samsung QB75N-W - QBN-W Series 75" 4K UHD LED Touch Display
Revitalize Productive Collaboration through Refined Interactive E-board Technology
Overview:
Samsung’s QBH-TR / QBN-W e-boards elevate information sharing and drive more productive conversation in classroom and meeting room settings through an interactive, all-in-one format. These versatile displays eliminate common meeting obstacles and allow groups to explore new ideas quickly and easily.
- Deliver a smooth, comfortable digital writing experience
- Enable up to four participants to write simultaneously with any tool
- Streamline effi cient meeting facilitation via the embedded MagicIWB S5 solution
- Alternate between content sources with an intuitive UX
- Improve real-time interaction and introduce new ideas through advanced connectivity
- Elevate content quality with crisp UHD resolution
- Enhance meeting room sophistication through a stylish, pristine design
Features:
Revitalize Productive Collaboration
Samsung's QBH-TR / QBN-W e-boards offer a versatile, all-in-one arena for improved collaboration. Enhanced touch technology, the intuitive MagicIWB S5 solution and UHD picture quality come together to boost productivity and collaboration by facilitating engaging, efficient interaction.

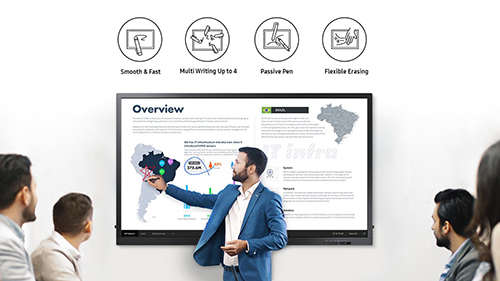

Enhance Touch, Enhance Capacity
Leverage heightened touch functionality for a smooth and versatile digital writing experience. Up to four users can write simultaneously using the provided pen or virtually any other tool.

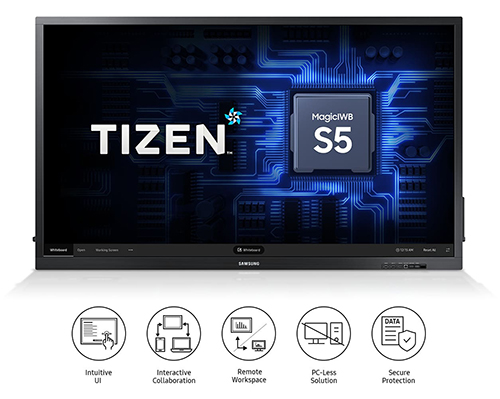

Elevate Collaboration Quality
The embedded MagicIWB S5 solution facilitates discussion management and organization with an intuitive interface for quick access to vital collaborative functionalities such as screen mirroring and real-time notation saving.

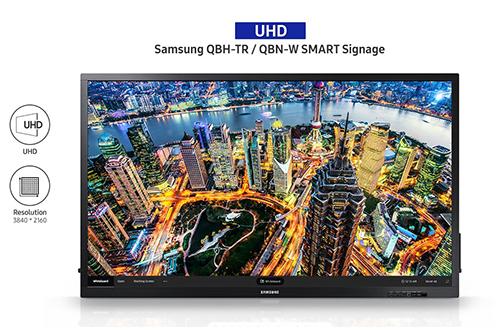

Amplify Visual Presentation
Bring collaborative ideas to life through advanced UHD picture quality. Through ultra-high resolution, ensure all notations and introduced content are clear and legible for every participant.

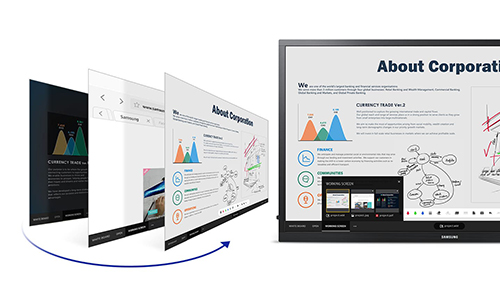

Switch Sources Seamlessly
Through the Working Screen function, users can quickly switch between multiple screens, such as the whiteboard, internet browser and connected input sources, with just a few touches.

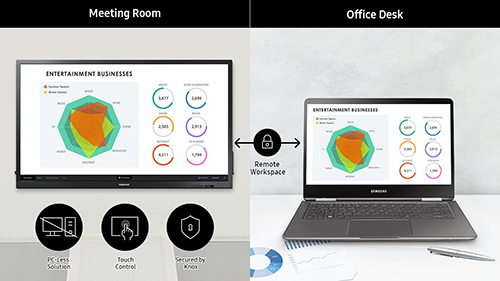

Retrieve and Control Content Remotely
Pull and edit content on remote laptops directly through the central screen utilizing touch functionality. The powerful Knox system secures the Remote Workspace connection to protect against information leakage and meddling.

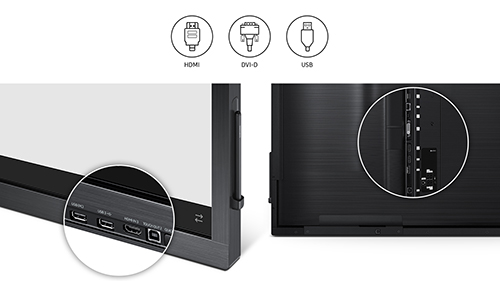

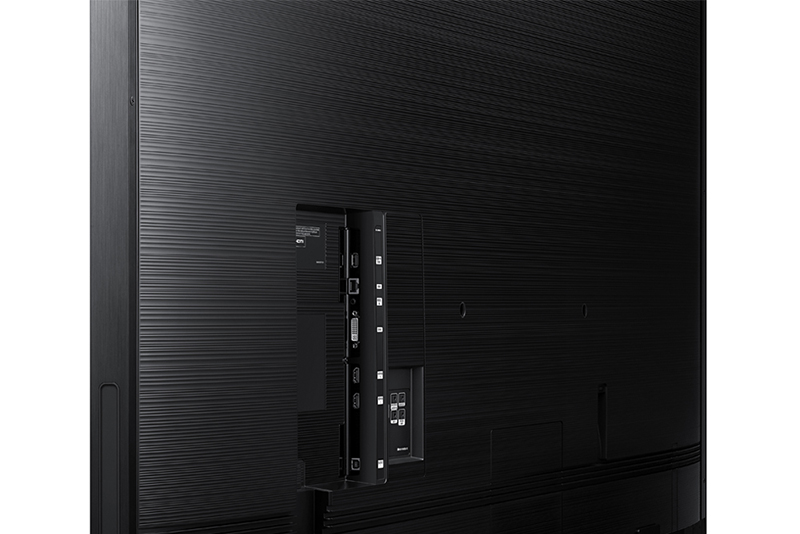

Connect with Convenience
Each e-board offers a wide range of connections including HDMI, DVI-D and USB ports, where users can load, share and revise content directly from their personal devices.

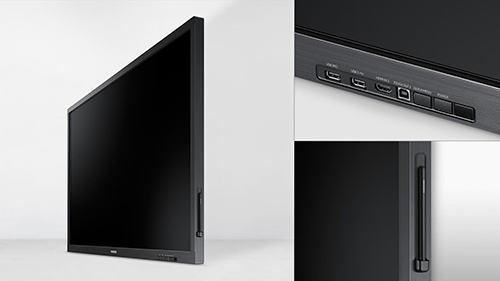

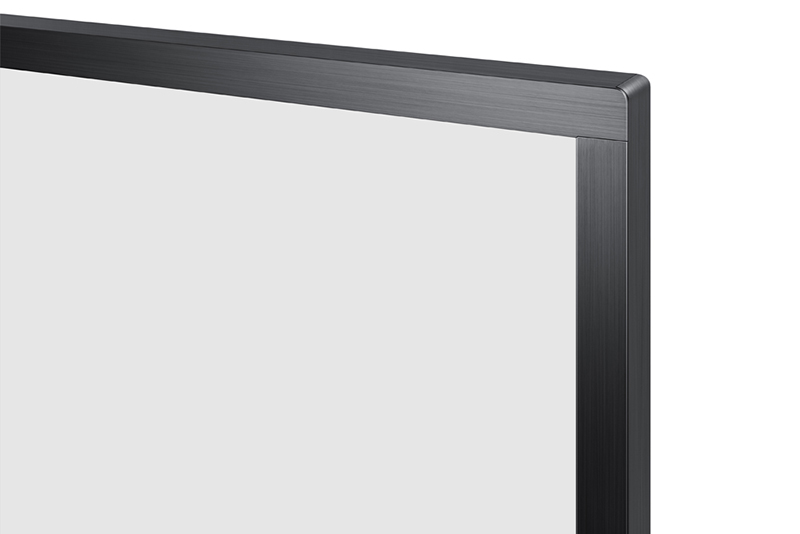

Maintain Organization with Style

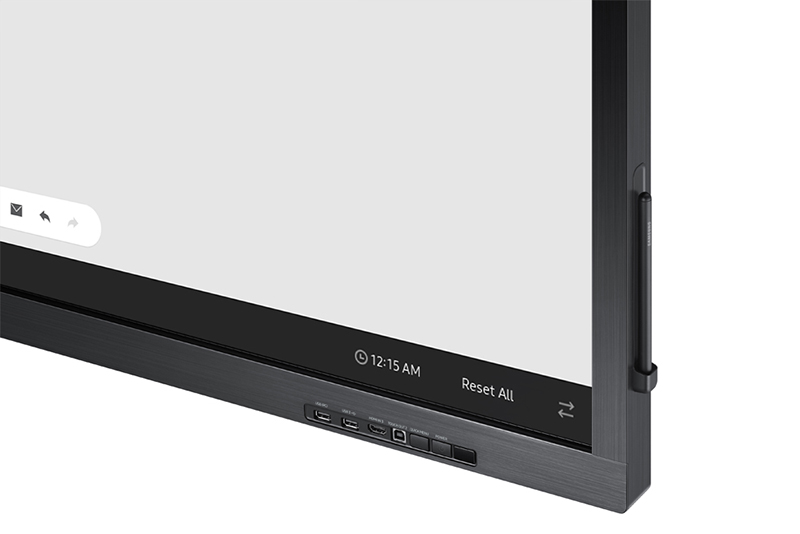

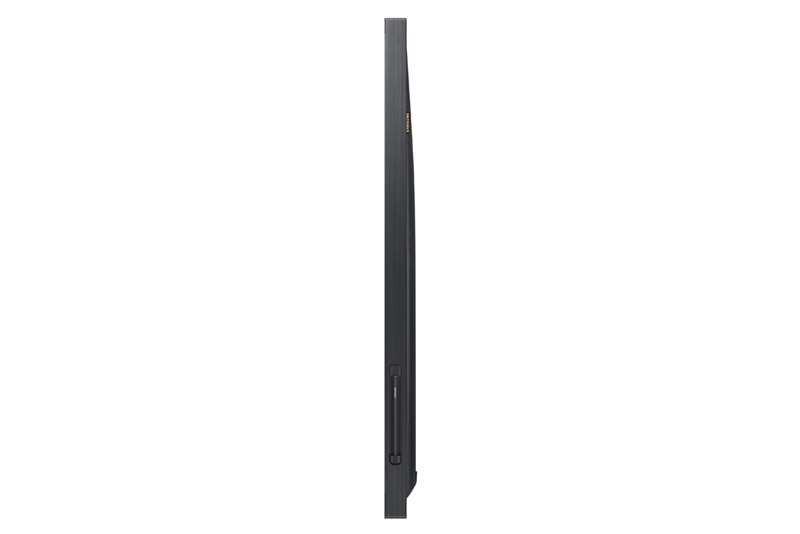

Drive more organized collaboration with a sleek, sophisticated design. The magnetic side pen holder and frontal connection ports keep needed functions within reach, without the mess.
Specifications:
| Samsung QB75N-W - QBN-W Series 75" 4K UHD LED Touch Display Specifications | |
|---|---|
| Panel | |
| Screen Size | 75" |
| Type | 120Hz Direct LED |
| Resolution | UHD (3840 x 2160) |
| Brightness (Typical) | 300nit (w/o Touch Glass) |
| Contrast Ratio (Typical) | Mega |
| Viewing Angle (H/V) | 178/178 |
| Response Time (G to G) | 8ms |
| Operation Hour | 16/7 |
| Sound | |
| Speaker Type | Built in Speaker (10W x 2) (Down Firing w/Bass Reflex) |
| Connectivity | |
| Input | Video: HDMI Rear1, HDMI Rear2 (ver 2.0), HDMI Front3 (ver 1.4), DVI-D USB: USB 1, 2 (Rear), USB 3 (Front), PC USB (Front) |
| Output | Audio Touch Out 1 (Rear), Touch Out 2 (Front) |
| External Control | RS232C (in/out) thru stereo jack, RJ45, Wi-Fi |
| External Sensor | IR Sensor (Display Control) |
| Touch | |
| Type | IR (Infra Red) |
| # of Drawing | 4 drawing (SoC), 10 drawing (External Windows PC) |
| Touch Pen Type | Passive Pen |
| Object Recognition Range | 8mm |
| Touch Response Time | 7ms (Single Touch) |
| Power | |
| Type | Internal |
| Power Supply | AC 100~240V 50/60Hz |
| Power Consumption | Rating [W/h]: 200 (Max 220) Typical [W/h]: 157 Stand-by (Max): 0.5 |
| Environmental Conditions | |
| Operating Temperature | 0℃~ 40℃ |
| Operating Humidity | 10~80% |
| Features | |
| Key | Slim & Light LFD with Built-in MagicInfo Player S5, SSSP |
| Special | Hardware: Super Clear Coating, Temperature Sensor, Pivot Display, Clock Battery (168hrs Clock Keeping), Built in Speaker(10W x 2), WiFi Module Embedded Software: MagicIWB S5 |
| Platform | Kant-M (Tizen 3.0) |
| Internal Player (Embedded H/W) | |
| Processor | Coretex A72 1.7GHz Quad-Core CPU |
| On-Chip Cache Memory | L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB |
| Clock Speed | 1.7GHz Quad-Core CPU |
| Main Memory Interface | 3GB 3ch 64bit LPDDR4 1.6GHz |
| Graphics | 2D & 3D Graphic
Accelerator Data Format : 32bpp Output resolution : 3840x2160p |
| Storage (FDM) | 8GB (3.88GB Occupied by O/S, 4.12GB Available) |
| Multimedia | *Video Decoder: MPEG 1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS/AVS+, MVC, VP8, VP9, HEVC, JPEG Audio DSP(Decoder), MPEG, AC3, AC4, DD, MP3 and etc |
| IO Ports | USB 2.0 |
| Operating System | Tizen 3.0 (VDLinux) |
| Mechanical Spec | |
| Without Stand (W x H x D) | 1741.5 x 1012.1 x 81.2 mm |
| Package (WxHxD) | 1905 x 1175 x 307 mm |
| Product Weight | 57.4 kg |
| Package Weight | 69.5 kg |
| Color | Black |
| VESA Mount | 400 x 400 |
| Protection Glass | Yes |
| Stand Type | Wall Mount |
| Media Player Option Type | N/A |
| Rotation | N/A |
| Power Cable Length | 3m |
| Accessory | Pen Holder |
| Certification | |
| Safety | 60950-1 |
| EMC | Class B |
| Environment | N/A |
| Service | |
| Standard Warranty | 3 Years Onsite (Parts/Labor/Backlight) |
| Accessories | |

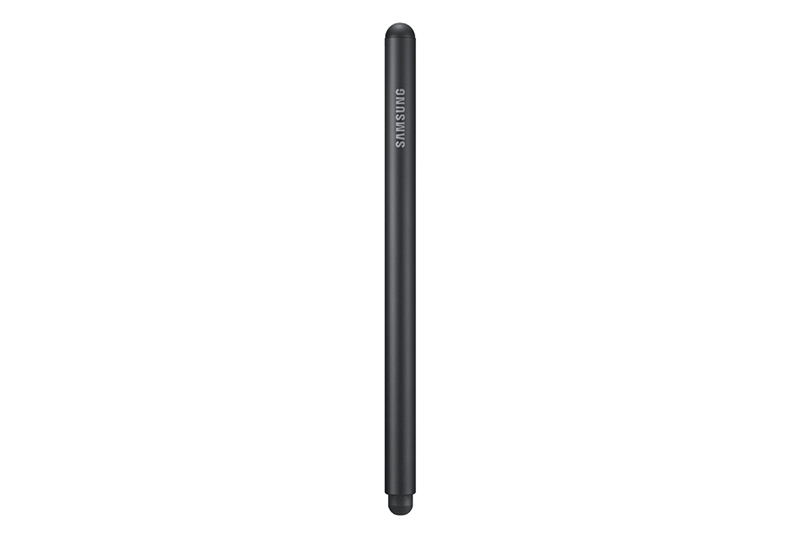

| Included | Passive Pen, Power Cable |
| Optional | Stand: Optional Mount: Optional Specialty: New MagicIWB S5 UX |
Pricing Notes:
- All Prices are Inclusive of GST
- Pricing and product availability subject to change without notice.
Our Price: Request a Quote
