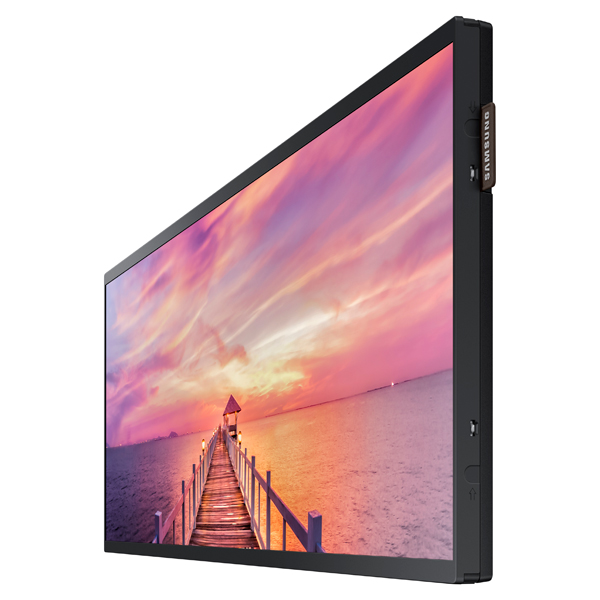

Samsung SH37F - SHF Series 37" Edge-Lit LED Stretched Display
Stretched display designed to fit into small spaces
This product is no longer available. Please Contact Us for a replacement.
Overview:
Samsung's SH37F stretched display features a slim and narrow bezel to deliver an eye-catching experience for your customers. Designed for small spaces, you can display images in portrait or landscape orientation on the non-glare, high brightness panel that stands out even in bright ambient light. Plus, you get simple display and content management with DP Loop Out and USB Playback.
- 16:4.5 stretched display designed to fit in small spaces
- Slim depth at just 39.9mm and and a narrow bezel at just 5.7mm on each side and 12mm on the top and bottom
- Non-glare, 700nit high brightness panel offers improved visibility in bright ambient light
- Reliable 24/7 continuous run-time to meet around the clock business operating requirements
Features:
Eye-Catching Stretched Display
The SH37F features our new widescreen format. It's 16:4.5 stretched display that allows your retail space to be mindful of space and placement while providing your customers with the right information at the right time to create new sales opportunities for your business.
Slim, Narrow Design
The SH37F features a slim depth at just 39.9mm and a narrow bezel at just 5.7mm on each side and 12mm on the top and bottom to attract customer attention with an elegant look and feel.
Non-Glare, High Brightness Panel for Improved Visibility
Innovative Samsung cooling technologies allow your message to be displayed with highly reliable 24/7 continuous operation. So your business can meet 24/7 operating requirements in venues ranging from retail stores and public spaces to Command & Control facilities.
Built for 24/7 Use
These displays are built for 24/7 continuous use. So you can meet around the clock operating requirements in venues ranging from retail storefronts to public spaces.

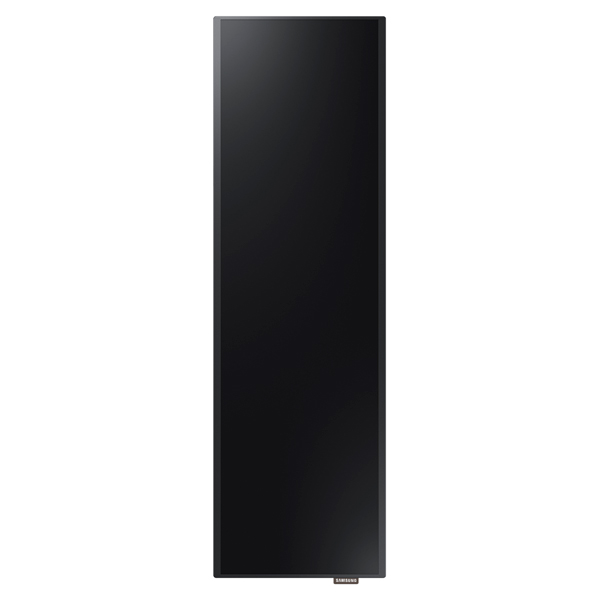

Display in Portrait or Landscape Mode
Position your display in portrait or landscape configuration to deliver impactful images. The versatility provides your business with the flexibility to adapt to your customers' needs.
Simple Content Management
DP Loop Out and USB Playback deliver simple display and content management so can maximize the efficiency of your signage deployments.
Specifications:
| Samsung SH37F - SHF Series 37" Edge-Lit LED Stretched Display Specifications | |
|---|---|
| Display | |
| Screen Size | 37" |
| Panel Technology | E-LED BLU |
| Resolution | 1920 X 540 |
| 16:4.5 | |
| Brightness | 700nit |
| Contrast Ratio (Typical) | 4000:1 |
| Viewing Angle (H/V) | 178º/178º |
| Response Time | 16ms |
| Connectivity | |
| Input | RGB: DVI-I, Display Port 1.2 VIDEO: HDMI 1.4 HDCP: HDCP 2.2 AUDIO:Stereo mini Jack USB: USB 2.0 x 1 |
| Output | RGB: DO1.2 (Loop-Out) AUDIO: Stereo Mini Jack |
| External Control | RS232C(in/out) thru Stereo mini Jack, RJ45 |
| Sensor | IR |
| Power | |
| Power Supply | AC 100 - 240 V (+/- 10 %), 50/60 Hz |
| Power Consumption (Typical/Max) | 56Wh / 77 Wh |
| Power Consumption (Standby) | less than 0.5W |
| Environmental Conditions | |
| Operating Temperature | 0℃~ 40℃ |
| Operating Humidity | 10~80% |
| Features | |
| Special | USB Plug and Play, Tilting and Portrait Install support, Daisy Chains, Shock and Vibration certificated (IEC 61373), Magic Clone(to USB), RS232 MDC, Videowall, Smart Scheduling, Auto Source Switching, Internal Media Player |
| Media Player Type | Cortex-A9 1GHz Quad Core CPU, 1.5GB DDR3, 8GB FDM, USB 2.0, Samsung Proprietary OS (VDLinux) |
| Plug & Play | Yes |
| 24/7 Operation | Yes |
| Videowall/Thin Bezel | Yes |
| Dimensions | |
| Without Stand (W x H x D) | 36" x 11" x 1.5" |
| Packaging (W x H x D) | 43.3" x 4.8" x 14.5" |
| Bezel Width | 5.7 (Side), 12 (Top/Bottom) |
| Weight | |
| Product Weight | 14.5 lbs |
| Package Weight | 18.7 lbs |
| Service | |
| Standard Warranty | 3 Years Onsite (Parts/Labor/Backlight) |
| Included in Box | |
| Included in Box | QSG, Warranty Card, Regulatory Guide, Power Cord, Batteries, Remote Control, RS232C(IN) adaptor, Screw, External remote control sensor, Cover-Jack |
| Optional Media Player | SBB (not attached) |
| Green Management | |
| ROHS Compliant | Yes |
| Emission Standard | EMC |
| Packaging Recyclability | Packing Materials Recyclable |
| Mechanical Specs | |
| VESA Mount | 400x200 (mm) |
