Samsung UD46E-P - UD-E-P Series 46" Direct-Lit LED Display
Ultra-narrow bezels at 3.5mm bezel-to-bezel (BtB) for virtually seamless video walls, with reliable 24/7 operation.
This product is no longer available, replaced by the UD46E-A - UD-E-A Series 46" Direct-Lit LED Display
Overview:
Create beautiful video walls with virtually seamless tiling thanks to the ultra-thin bezel of the UD46E-P. Embedded System-on-Chip (SoC) technology allows for an all-in-one display solution without the the need for external media players. And factory calibration provides brightness and color uniformity across multiple displays right out of the box.
- Ultra-narrow bezels at 3.5mm bezel-to-bezel (BtB) for virtually seamless video walls, with reliable 24/7 operation
- All-in-one display solution with content management software included and no need for external media players
- Daisy chain multiple displays with Display Port 1.2 digital loop-out to achieve 4K UHD (3840x2160) resolution
- Factory-tuned for brightness and color uniformity right out of the box, with Advanced Color Management for customization
Features
Ultra-Narrow 3.5mm Bezels
The UD46E-P features incredibly thin bezels at a mere 3.5mm bezel-to-bezel. So you can create virtually seamless video walls with elegance and sophistication.
Enhanced System-on-Chip Performance with a Quad Core CPU
Powered by a System-on-Chip (SoC) semiconductor and quad core CPU with 8GB of storage, Samsung's SMART Signage Platform (SSP) is an open and integrated player side media platform that provides a powerful, streamlined solution to reduce TCO for digital signage deployments, through savings in hardware, installation and operating costs.
Beautiful Video Walls
Create elaborate, stunning video walls. And when you daisy chain multiple displays with the Display Port 1.2 digital loop-out feature, you can achieve 4K UHD (3840x2160) resolution. So you can deliver exceptional content with fine detail for a stunning, impactful experience.
Factory Calibration
Samsung's factory calibration ColorExpert technology helps to minimize color difference across multiple displays. Factory-tuned for brightness, color temperature and gamma, you can experience color uniformity right out of the box for consistent video wall matrices.
Advanced Color Management (ACM)
The ACM solution provides a user-friendly interface to implement customized and detailed color adjustments. Fine-tune luminance, temperature and gamma through auto calibration, manual calibration and duplication to achieve the perfect display for your business.
MagicInfo Digital Signage Software
Create playlists, set playback schedules and publish content directly to the display with this software. Most traditional file formats are supported including RSS feed and live web pages.
Image Rotation
Enjoy convenient content creation and management. Create your desired content on a single display and turn on Image Rotation to transform portrait orientation into horizontal, and vice versa, when you connect and split-screen multiple displays in a video wall matrix.
Magic Clone
Save installation time for multiple displays with Magic Clone. Simply enter your display settings the first time, save the setting information to a USB or external HDD and plug in the external device to the other sets to install them equally.
Reliable 24/7 Operation
Innovative Samsung cooling technologies on these video wall displays allow your installation to be shown with highly reliable 24/7 continuous operation, so your business can meet around the clock operating requirements.
Specifications:
| Samsung UD46E-P - UD-E-P Series 46" Direct-Lit LED Display Specifications | |
|---|---|
| Display | |
| Screen Size | 46" |
| Brightness | 700 cd/m2 |
| Panel Technology | D-LED DID |
| Contrast Ratio (Typical) | 3500:1 |
| Resolution | 1920x1080 |
| Viewing Angle (H/V) | 178°/178° |
| 16:9 | |
| Response Time | 8ms |
| Connectivity | |

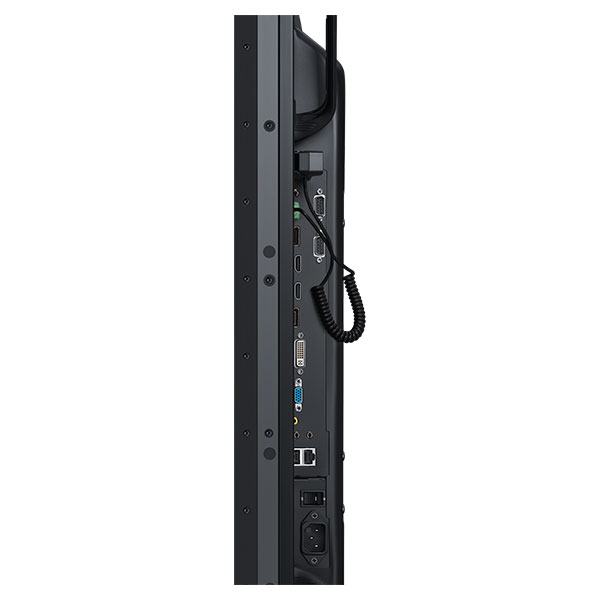

| Input | RGB: Analog D-SUB, DVI-D, Display Port 1.2, VIDEO: HDMI1,HDMI2, Component(CVBS Common), AUDIO: Stereo mini Jack, USB: USB 2.0 x 1 |
| Output | RGB: DP1.2(Loop-out), AUDIO: Stereo mini Jack |
| External Control | RS232C(in/out), RJ45 |
| Sensor | Detachable type(IR, Ambient) |
| Power | |
| Power Supply | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz |
| Power Consumption (Typical/Max) | 135W / 187W |
| Power Consumption (Standby) | less than 0.5W |
| Environmental Conditions | |
| Operating Temperature | 0℃~ 40℃ |
| Operating Humidity | 10~80% |
| Features | |
| Special | Software: ACM Support(Advanced Color Management), Magic Clone(to USB), Auto Source Switching & Recovery, Haze 44%, Temperature Sensor, RS232C/RJ45 MDC,Plug and Play (DDC2B), PIP/PBP, Video Wall(OSD), Video Wall Daisy Chain, Portrait Mode, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(Supporting MST 2x2 UHD Resolution), Smart Scheduling, Smart F/W update, Clock Battery(80hrs Clock Keeping) Built In MagicInfo(MagicInfo Player S3) |
| Video Wall/Thin Bezel | Yes |
| Smart Signage Platform | Yes |
| Media Player Type | Cortex-A9 1GHz Quad Core CPU, 1.5GB, DDR3-933, 8GB, USB 2.0, Samsung Proprietary OS (VDLinux) |
| 24/7 Operation | Yes |
| Dimensions | |
| Without Stand (W x H x D) | 40.2" x 22.7" x 3.8" |
| Packaging (W x H x D) | 45.7" x 28.1" x 11" |
| Bezel Width | 2.3mm(U/L), 1.2mm(R/B) |
| Weight | |
| Product Weight | 39.7 lb. |
| Product Weight | 49.4 lb. |
| Included in Box | |
| Included in Box | Quick Setup Guide, Warranty Card, DP cable, Power Cord, Remote Controller, Batteries, |
| Optional Wall Mount Kit | WMN-46VD, MID-UD46DS(TBD) |
| Optional Media Player | SBB (Optional, SIM Type) |
| Green Management | |
| Energy Star Certified | Yes |
| ROHS Compliant | Yes |
| Emission Standard | EMC |
| Packaging Recyclability | Yes, Packing Materials |
| Mechancial Specs | |
| Vesa Mount | 600 x 400 mm |
