Samsung 460DR-2 - DR Series 46" Outdoor LCD Display
Versatility Makes It The Best LCD Under The Sun.
This product is no longer available, replaced by the OH46F - OH-F Series 46" High Brightness Outdoor Display
Overview:
Samsung's DR Series brings flexibility and full HD resolution to outdoor signage. The 46" LCD display is a versatile, panel-only solution that can be placed in a customized enclosure to meet the unique messaging needs of any business. And high brightness and contrast deliver superb visibility in settings with bright ambient light conditions to help ensure your message is seen.
- Easy Customization
- High Brightness, High Contrast
- Polarized Display
- Full HD Resolution
Features
Easy Customization
The 460DR-2 is an open frame solution, so it lends itself to a wide variety of outdoor uses.
High Brightness, High Contrast
1500 nits brightness and 4000:1 contrast ratio assure excellent visibility in outdoor settings with bright ambient light conditions.
Polarized Display
The 460DR-2's special monitor film provides bystanders with a perfect view of the on-screen imagery while wearing sunglasses.
Full HD Resolution
The 460DR-2 offers full HD 1920 x 1080 resolution, adding richness and depth to the image quality.
RJ45 MDC and DisplayPort
DisplayPort delivers enhanced connectivity and an improved display interface, while an upgraded Multi Display Control solution enables control of multiple monitors via their embedded RJ45 interfaces.
SBB-A and SBB-AD7 Slide-In Network Module
The display's open-frame solution is compatible with the SBB-A and SBB-AD7 media players, adding network capability as well as MagicInfo™ Premium software (the first 5 licenses are free).
Specifications:
| Samsung 460DR-2 - DR Series 46" Outdoor LCD Display Specifications | |
|---|---|
| Display | |
| Screen Size | 46" CCFL |
| Panel Technology | S-PVA (60Hz) |
| Resolution | 1920 x 1080 |
| Brightness | 1500 nits |
| Contrast Ratio (Typical) | 4000:1 |
| Viewing Angle (Horizontal/Vertical) | 178˚/178˚ |
| Response Time | 8ms |
| Connectivity | |

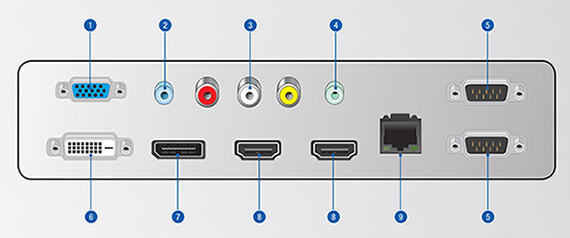

| Input | VGA (D-Sub 15 Pin), DVI-D, DisplayPort, Composite, HDMI (x2) Component (D-Sub 15 Pin), Stereo Mini Jack |
| Output | Stereo Mini Jack |
| External Control | RJ45, RS232C (In/Out) |
| Power | |
| Power Supply | AC 100 - 240 V (+/- 10 %), 50/60 Hz |
| Power Consumption (Typical/Max | 345W / 420W |
| Power Consumption (Standby) | Less than 1W |
| Environmental Conditions | |
| Operating Temperature | 0˚C - 40˚C |
| Operating Humidity | 10 - 80% |
| Features | |
| Special | Panel Kit Only, Air Conditioning Guide, Lamp Error Detection, Anti Retention, Temperature Sensor, RS232C/RJ45 MDC, Plug and Play (DDC2B), PIP/PBP, Video Wall (10x10), Pivot Display, Button Lock, Smart Scheduling, Smart F/W update |
| Integrated Tuner | N/A |
| Media Player Type | SBB-A (Optional Accessory), SBB-AD7 (Optional Accessory |
| VESA Standard Wall Mount Interface | 400 x 400mm |
| Dimensions | |
| Product Dimensions (without stand) | 41.2" x 24.9" x 6.0" |
| Packaging Dimensions | 45.7" x 29.7" x 12.8" |
| Bezel Width | N/A |
| Weight | |
| Product Weight | 52.8 lbs. |
| Shipping Weight | 66 lbs. |
| Service | |
| Standard Warranty | 3-Year Parts/Labor/Backlight |
| Accessories | |
| Included | Quick Setup Guide, Warranty Card, Application CD, Power Cord, Remote Controller, Batteries |
| Optional Mount | N/A |
| Optional Stand | N/A |
| Green Management | |
| Emission Standard | EMC |
| Energy Star 5.0 Compliant | N/A |
| RoHS Compliant | Yes |
| Packaging Recyclability | Packing Materials Recyclable |
| Connectivity | |
|
 |
Images:
Documentation:
Download the Samsung 460DR-2 46" Outdoor LCD Display Datasheet (.PDF)
